Category: Thermography
TV 293
Item number: 62808000
Advantages:
- > Digitalkamera für Bildüberlagerung
- > Integriertes Farbdisplay
- > Einfache Bedienung
- > Universell einsetzbar, robust und zuverlässig
- > Integrierter Flash-Speicher mit Micro-USB-Schnittstelle

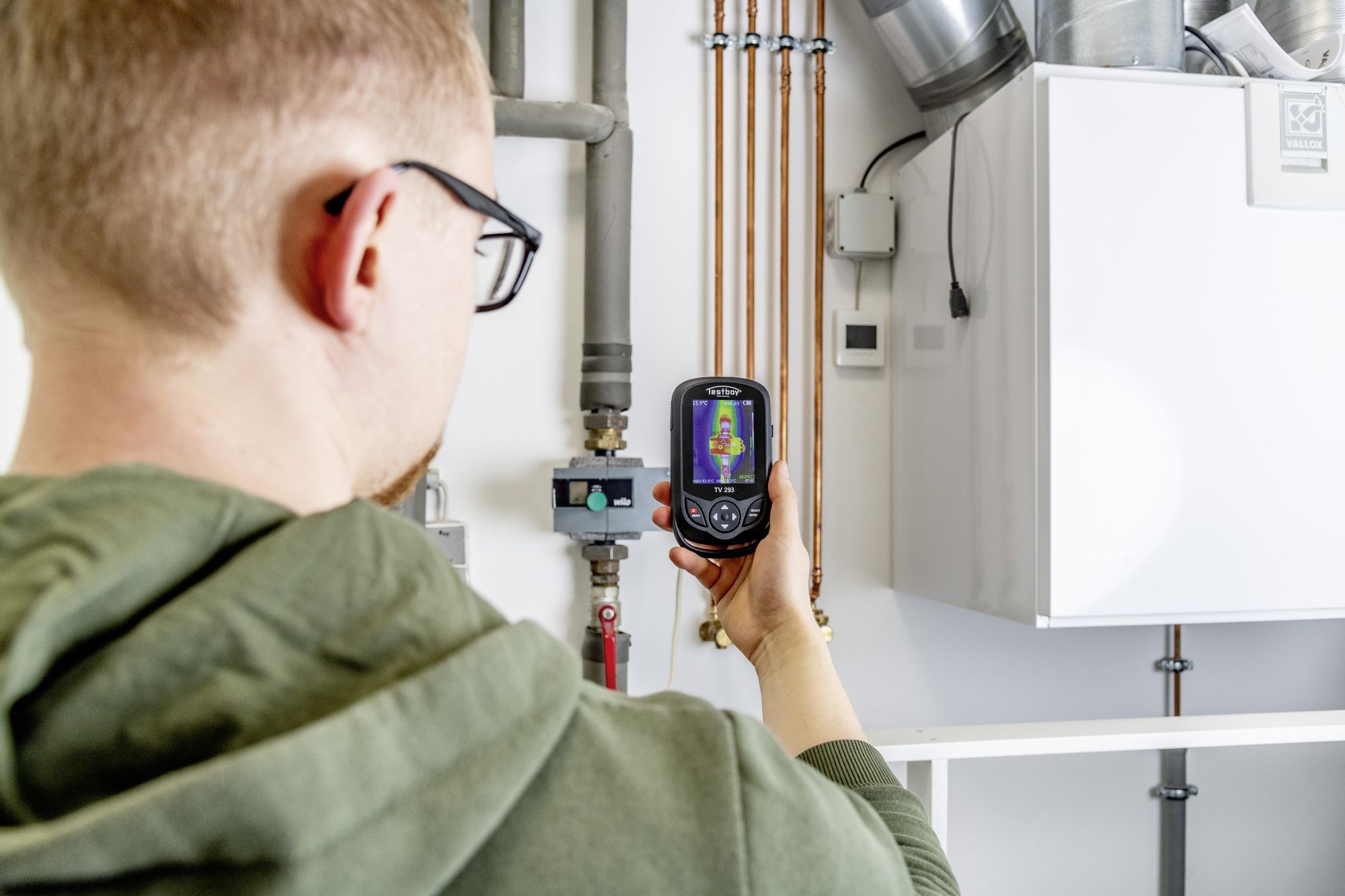

Die Infrarot-Wärmebildkamera Testboy® TV 293 ist handlich und einfach zu bedienen. Dank zahlreicher Profi-Funktionen muss sie sich aber nicht hinter den großen Wärmebildkameras verstecken und ist besonders vielfältig einsetzbar. Die Testboy® TV 293 verfügt über einen einstellbaren Emissionsgrad, fünf Farbpaletten und 9-Hz-Technologie. Eine Digitalkamera mit 300.000 Bildpunkten für die Bildüberlagerung von Wärmebild und Echtbild auf einem großen LCD runden den Funktionsumfung dieses smarten Gerätes ab.
Technical data
Display diagonal 3.2 inch |
With touch screen No |
Thermal image Yes |
Visual image Yes |
Thermal-/visual image Yes in one image |
Video recording Yes |
Frames per second 9 fps |
Thermal sensitivity at 30 °C 0.07 °C |
Temperature measuring range -20 - 300 °C |
Relative measurement accuracy 2 % |
Wave band 8 - 14 µm |
Field of view (FOV) horizontal 27 ° |
Field of view (FOV) vertical 35 ° |
Instantaneous field of view (IFOV) 3 m rad |
Auto focus No |
Auto orientation No |
Focus stacking No Focus Stacking |
Image averaging No Image averaging |
Increase image size No |
With memory function No |
Internal memory Yes |
SD-card slot No |
MiniSD-card slot No |
MicroSD-card slot No |
CompactFlash I card slot No |
CompactFlash II card slot No |
Includes USB connection Yes |
Bluetooth interface No |
Wi-Fi-compatible No |
Analogue video out No |
HDMI-connection No |
Ethernet No |
Gigabit Ethernet No |
RS-232 protocol support No |
RS-485 protocol support No |
FireWire (IEEE1394) connection No IEEE1394 |
Detector cooled No |
Ambient temperature 0 - 45 °C |
With laser No |
With built-in torch Yes |
With tripod holder No |
Suitable for exchangeable lenses No |
With digital alarm No |
With humidity sensor No |
With laser distance measurement No |
Battery powered Yes |
External power supply required No |
Max. battery duration 2 h |
Weight 0.210 kg |
Display resolution (horizontal) 480 px |
Sensor resolution (vertical) 160 px |
Sensor resolution (horizontal) 220 px |
Display resolution (vertical) 640 px |
Logistics data
Order unit piece |
Minimum order quantity 1 piece |
Packaging unit 1 carton |
Packaging dimensions (L × W × H) 180 × 105 × 65 mm |
Weight incl. packaging 0.53 kg |
EAN 4028532102937 |
Customs tariff number 90251900 |
CE marking yes |
RoHS compliant yes |
REACH: contains SVHC substances no (candidate list of 1 Oct 2026) |
Battery or rechargeable battery included yes |
