Category: Multimeters

TB PEN 1000

Item number: 61415000

Advantages:

  • > Umfangreiche Multimeterfunktion
  • > NCV
  • > Drehfeldbestimmung
  • > Handlich in Stiftform

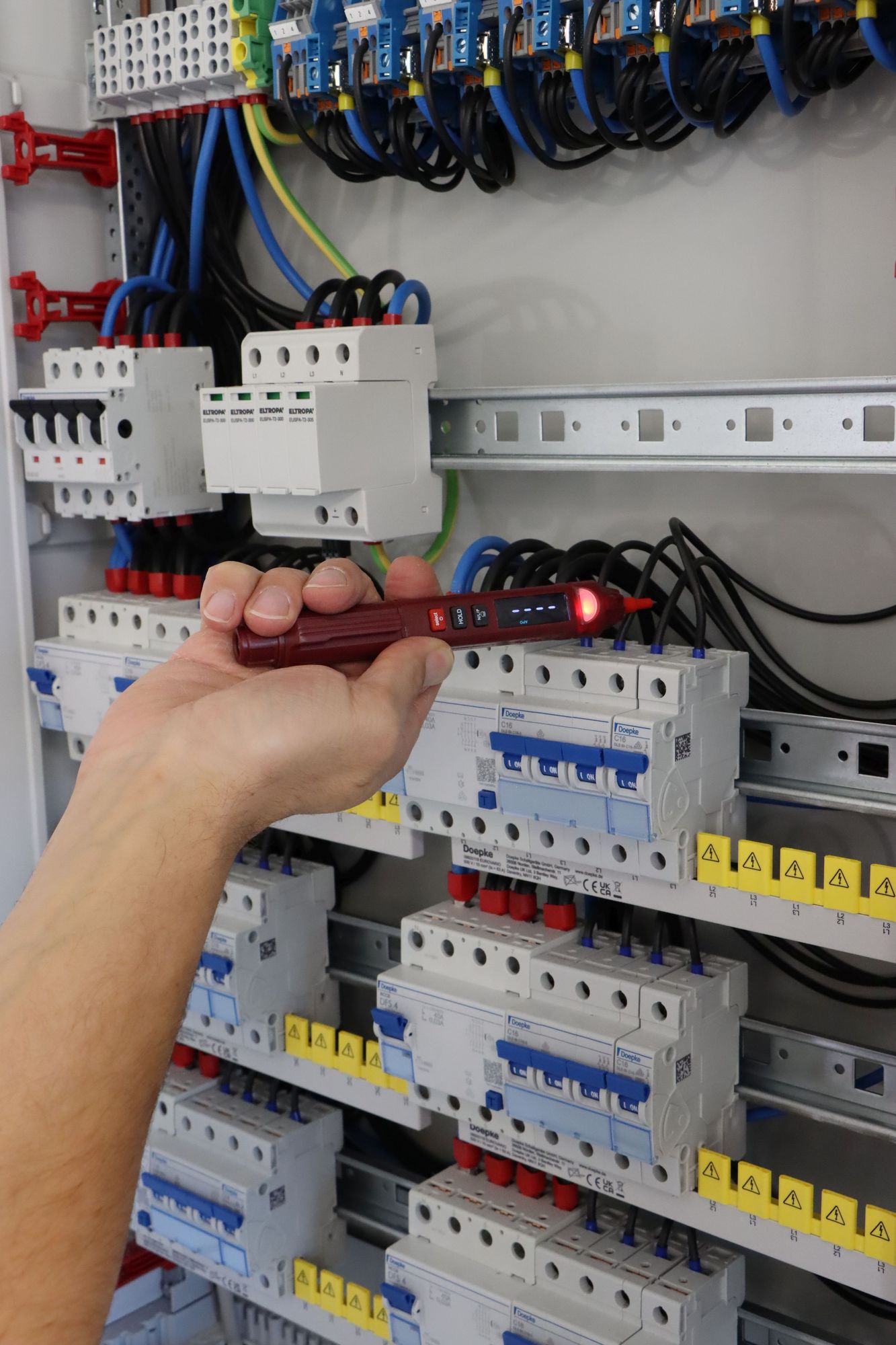

Das Testboy® Pen 1000 Multimeter der Zukunft! Unser handliches Multimeter in Stiftform bietet nicht nur die klassischen Funktionen wie Spannungsmessung, Kapazitätsmessung, Widerstandsmessung, Diodentest und Durchgangsprüfung, sondern auch innovative Features. Mit der berührungslosen Spannungsprüfung (NCV) können Sie elektrische Felder sicher erkennen, während die Drehfeldmessung und Temperaturmessung Ihnen noch mehr Vielseitigkeit bieten. Ein Must-Have für jeden Profi!

Technical data

Indicator

Digital

Multiple display

No

Measuring range selection

Automatic

Maximum voltage measuring range AC

600 V

Lowest resolution, AC voltage

0.001 mV

Maximum voltage measuring range DC

1000 V

Lowest resolution, DC voltage

0.001 mV

Max. resistance measuring range

60 MOhm

Milliohm measurement with 4 wire technique (Kelvin connection)

No

Lowest resolution, resistance

0.1 Ohm

Temperature measurement

Yes

Max. temperature measuring range

50 °C

Lowest resolution temperature

1 °C

Capacitance measurement

Yes

Max. capacitance measuring range

60000 µF

Lowest resolution, capacitance

0.00001 µF

Frequency measurement

Yes

Max. frequency measuring range

10000 kHz

Lowest resolution, frequency

0.001 Hz

Resistance test/diode test

Yes

Nominal test voltage 10 V

No

Nominal test voltage 50 V

No

Nominal test voltage 100 V

No

Nominal test voltage 250 V

No

Nominal test voltage 500 V

No

Nominal test voltage 1000 V

No

Cable length measurement

No

Cable symmetry testing for two wire connections a-b-E

No

Power and energy measurement

No

Harmonics analysis/power quality

No

With decibel measurement (dB)

No

Relative value measurement

No

Inductance measurement

No

With conductivity measurement

No

Continuity test

Yes

Data hold

Yes

Max. value storage

No

Min. value storage

No

Peak value memory

No

True RMS measurement

Yes

Duty cycle measurements

No

Rotational speed measuring

No

Measured value memory

Yes

Interface

No

Bluetooth interface

No

IR interface

No

Automatic circuit breaker

No

Measuring circuit category

CAT III

Max. voltage measuring circuit category

600 V

Explosion-proof execution

No

With display backlight

No

Degree of protection (IP)

IP20

Lowest resolution, AC/DC voltage

10 mV

Lowest resolution, AC/DC current

10 µA

High voltage test for motor windings

No

COFRAC certified

No

Relative measurement accuracy

0.5 %

Maximum voltage measuring range AC/DC

1000 V

Type of measurement

True root mean square

Calibration certificate according to DAkkS

No

Scaling bar graph linear

No

Current supply

Battery

Calibration according to ISO/IEC 17025

No

Scaling bar graph logarithmic

No

Logistics data

Order unit

piece

Minimum order quantity

1 piece

Packaging unit

1 carton

Packaging dimensions (L × W × H)

190 × 80 × 40 mm

Weight incl. packaging

0.194 kg

EAN

4028532130039

Customs tariff number

90303100

CE marking

yes

RoHS compliant

yes

REACH: contains SVHC substances

no (candidate list of 10 Nov 2026)

Battery or rechargeable battery included

no
