Category: Multimeters
TB 317
Item number: 61413000
Advantages:
- > CAT IV 1000 V
- > Bis 1000 V AC/DC
- > Robustes Gehäuse

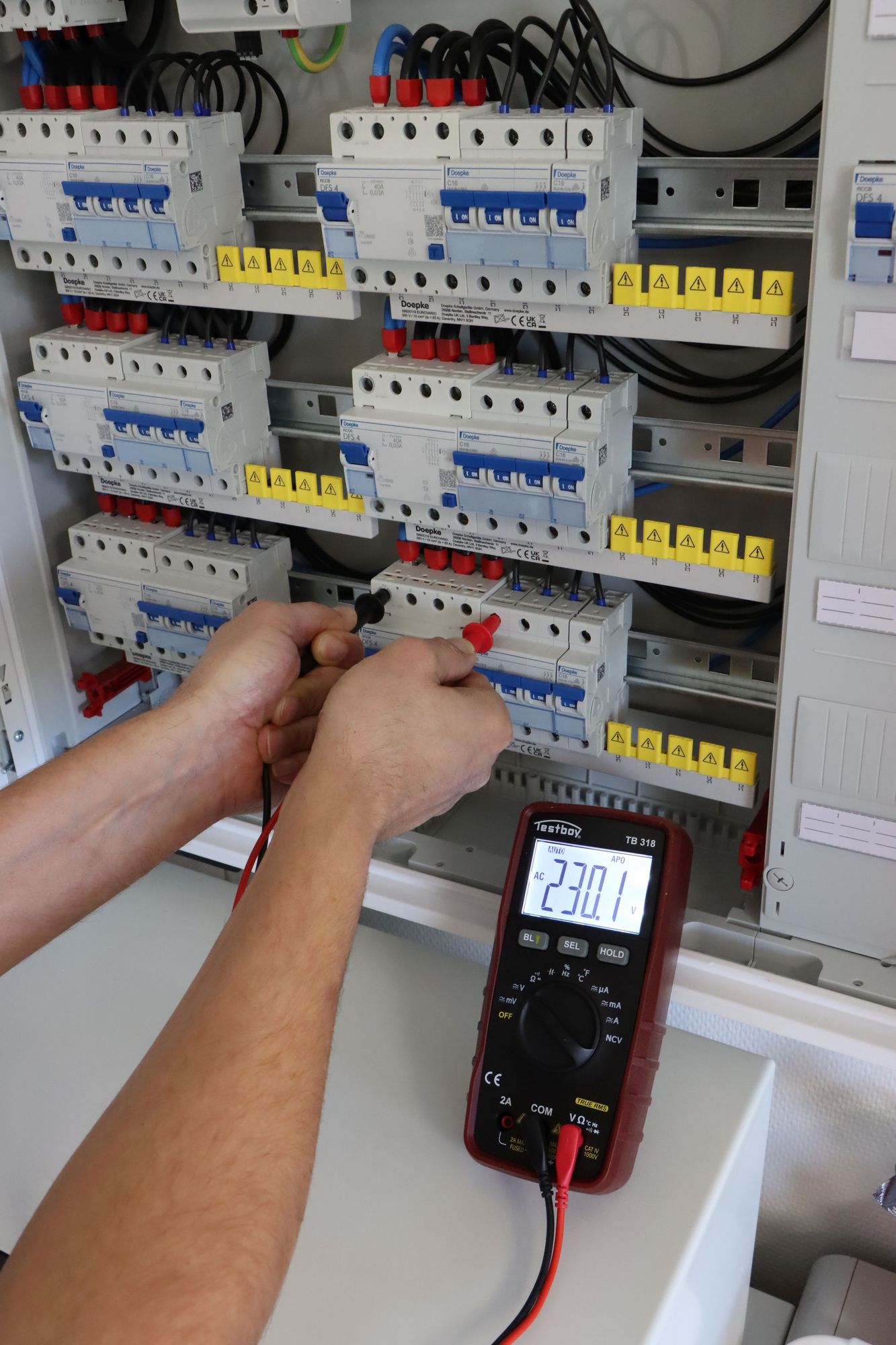

Das neue digitale Multimeter Testboy® TB 317 erschließt zahlreiche Möglichkeiten des Messens und Prüfens. Das Testboy® TB 317 ist ein professionelles True RMS Multimeter. Neben den Standardfunktionen prüft das Gerät die Temperatur, den Widerstand, Frequenzen bis 10 MHz und Kapazitätsmessungen bis 60 mF. Das Testboy® TB 317 findet seinen Einsatz in den Bereichen der Elektroinstallation, dem Service und der Industrie. Der kontaktlose Spannungstester und das gut lesbare 40 mm LC-Display mit Hintergrundbeleuchtung erleichtern die Arbeit mit diesem echten Allround-Talent.
Technical data
Multiple display No |
Maximum voltage measuring range AC 1000 V |
Maximum voltage measuring range DC 1000 V |
Max. current measuring range, AC 10 A |
Max. current measuring range, DC 10 A |
Max. resistance measuring range 60 MOhm |
Milliohm measurement with 4 wire technique No Kelvin connection |
Temperature measurement Yes |
Temperature measurement RTD No |
Temperature measurement TC Yes |
Max. temperature measuring range 1300 °C |
Capacitance measurement Yes |
Max. capacitance measuring range 60000 µF |
Frequency measurement Yes |
Max. frequency measuring range 10000 kHz |
Resistance test/diode test Yes |
Nominal test voltage 10 V No |
Nominal test voltage 50 V No |
Nominal test voltage 100 V No |
Nominal test voltage 250 V No |
Nominal test voltage 500 V No |
Nominal test voltage 1000 V No |
Cable length measurement No |
Cable symmetry testing for two wire connections a-b-E No |
Power and energy measurement No |
Harmonics analysis/power quality No |
With decibel measurement No dB |
Relative value measurement No |
Inductance measurement No |
With conductivity measurement No |
Continuity test Yes |
Data hold Yes Data Hold |
Max. value storage No |
Min. value storage No |
Peak value memory No |
True RMS measurement Yes TRMS |
Duty cycle measurements Yes |
Rotational speed measuring No |
Measured value memory No |
Interface No |
Bluetooth interface No |
IR interface No |
Automatic circuit breaker Yes |
Max. voltage measuring circuit category 1000 V |
Explosion-proof execution No |
With display backlight Yes |
High voltage test for motor windings No |
COFRAC certified No |
Relative measurement accuracy 0.8 % |
Maximum voltage measuring range AC/DC 1000 V |
Max. current measuring range, AC/DC 10 A |
Calibration certificate according to DAkkS No |
Scaling bar graph linear No |
Calibration according to ISO/IEC 17025 No |
Scaling bar graph logarithmic No |
Logistics data
Order unit piece |
Minimum order quantity 1 piece |
Packaging unit 1 carton |
Packaging dimensions (L × W × H) 227 × 134 × 83 mm |
Weight incl. packaging 0.81 kg |
EAN 4028532203177 |
Customs tariff number 90303100 |
CE marking yes |
RoHS compliant yes |
REACH: contains SVHC substances no (candidate list of 1 Oct 2026) |
Battery or rechargeable battery included no |
