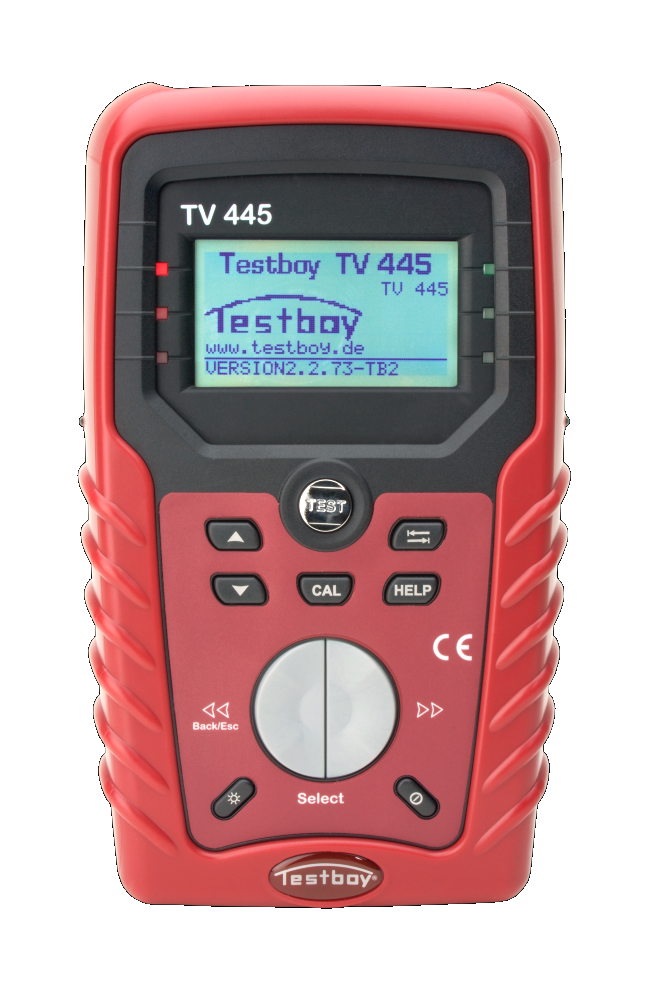

TESTBOY TV 445
Installation tester DIN VDE 0100-600
The installation tester, Testboy TV 445, enables checks in accordance with DIN VDE 0100-600. It is particularly easy to operate – not least due to the large LCDs and specific help screens, which exactly describe how to carry out a measurement. Already stored safety and RCD (FI) characteristics evaluate the result using Good/Bad message.
Ihre Vorteile
- Check in accordance with DIN VDE 0100-600, ÖVE E8001, NIN/NIV
- Specific help screens
- Large LCD
- Good/Bad message
Spezifikationen
| Technische Daten | TESTBOY TV 445 |
|---|---|
| Anzeige: | 128 × 64 pixels with backlighting and integrated Good/Bad indication |
| Überspannungskategorie : | CAT III 600 V, CAT IV 300 V |
| Spannungsversorgung: | 6 × 1.2 V NiMH battery or battery AA |
| Prüfspannung: | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Spannungsmessung: | 0–550 V AC |
| Erdwiderstandsmessung: | 0–9999 Ω |
| Isolationswiderstand: | 0–999 MΩ |
| Berührungsspannung RCD-Uc: | 0–100 V |
| Auslösezeit: | 0–2500 ms |
| Auslösestrom: | 10 mA, 15 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA |
| Betriebstemperatur: | 0–40 °C |
| Gehäuse: | Robust plastic with integrated magnetic clamp |
| Lieferumfang: | Incl. universal test cable 3 × 1.5 m, test cable for shockproof sockets, 3 test probes (blue, black, green), 3 crocodile clips (blue, black, green), mains adapter and batteries, carry strap, quick guide, carrying case and product test data |
