Two-pole Voltage Tester

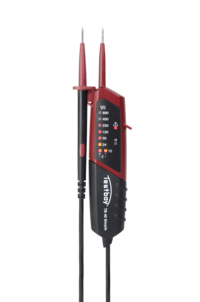

TESTBOY 40 simple
Two-pole voltage tester
Why complicate things when they can be simple? The Testboy 40 simple is robust and user-friendly. Thanks to its practical design, the Testboy 40 Simple fits comfortably in the hand and is classic and easy to operate. This guarantees the user a long service life. The voltage tester reliably displays DC and AC voltages in the range from 12 to 690 V.

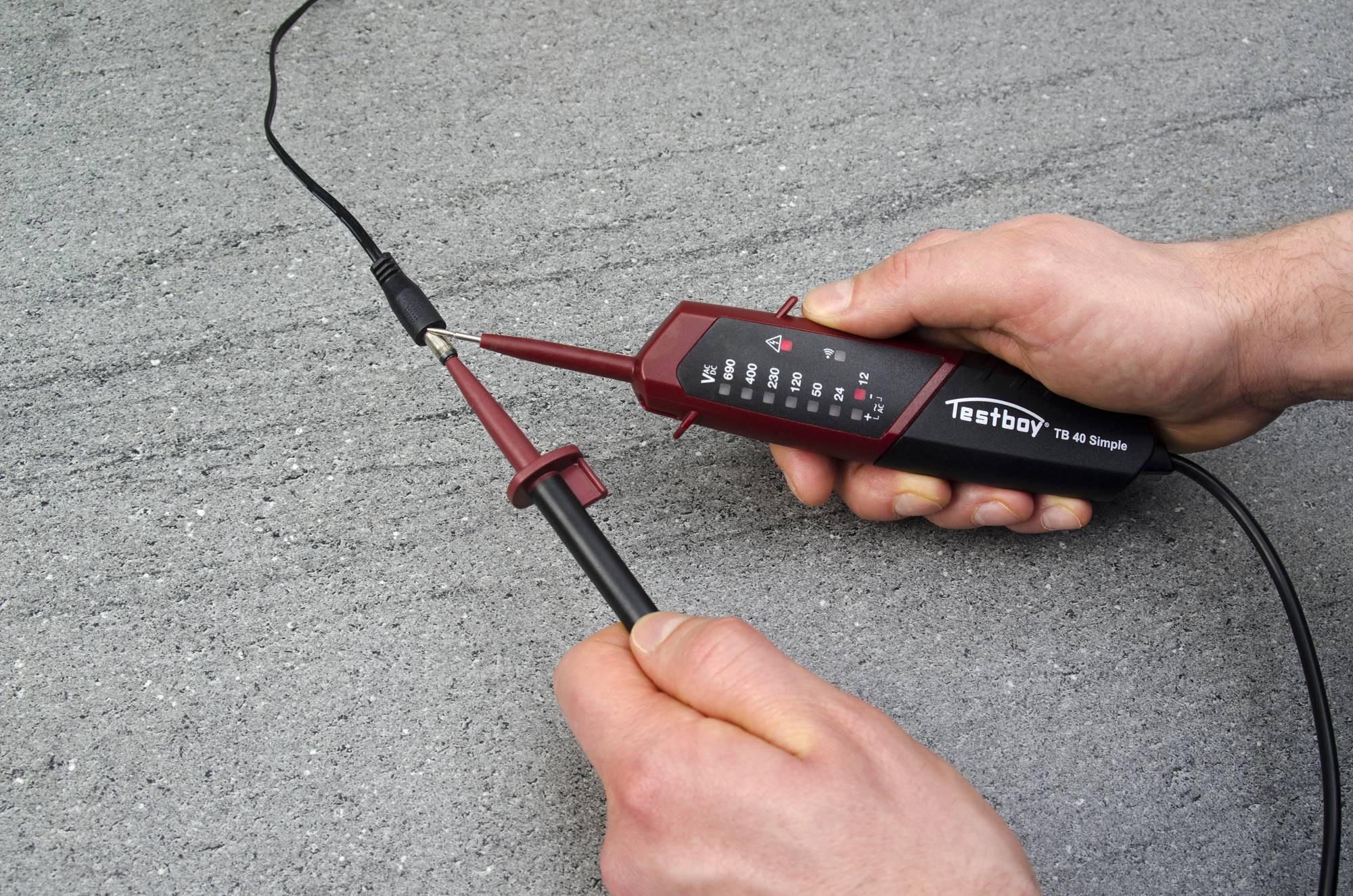

In addition, the Testboy 40 simple enables continuity testing and single-pole phase search.
HERE you will find the video presentation of the TESTBOY 40 simple
HERE you will find the video presentation of the TESTBOY 40 simple
How you benefit

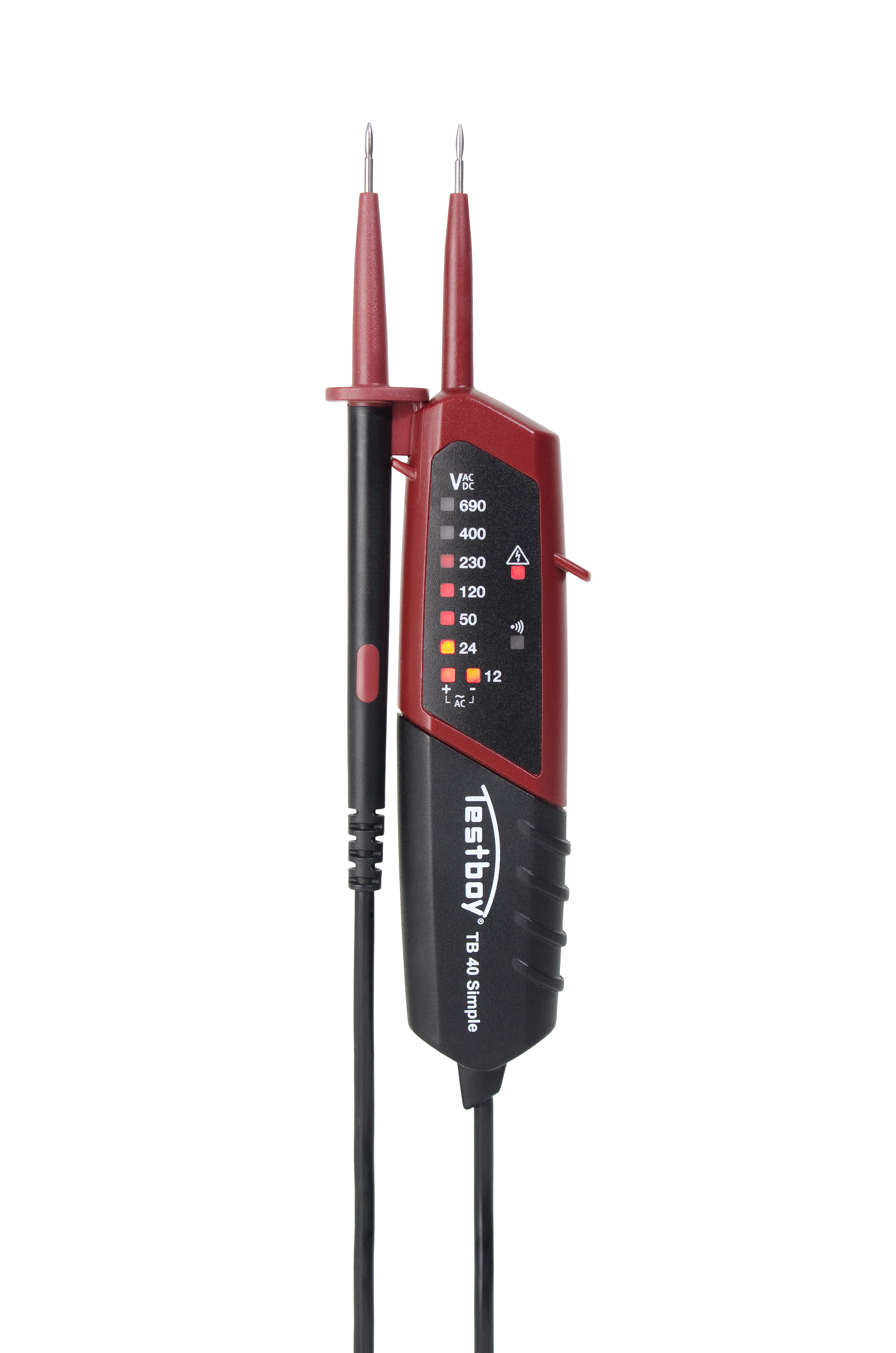

- Optical display with 10 LEDs
- 12 - 690 V AC/DC

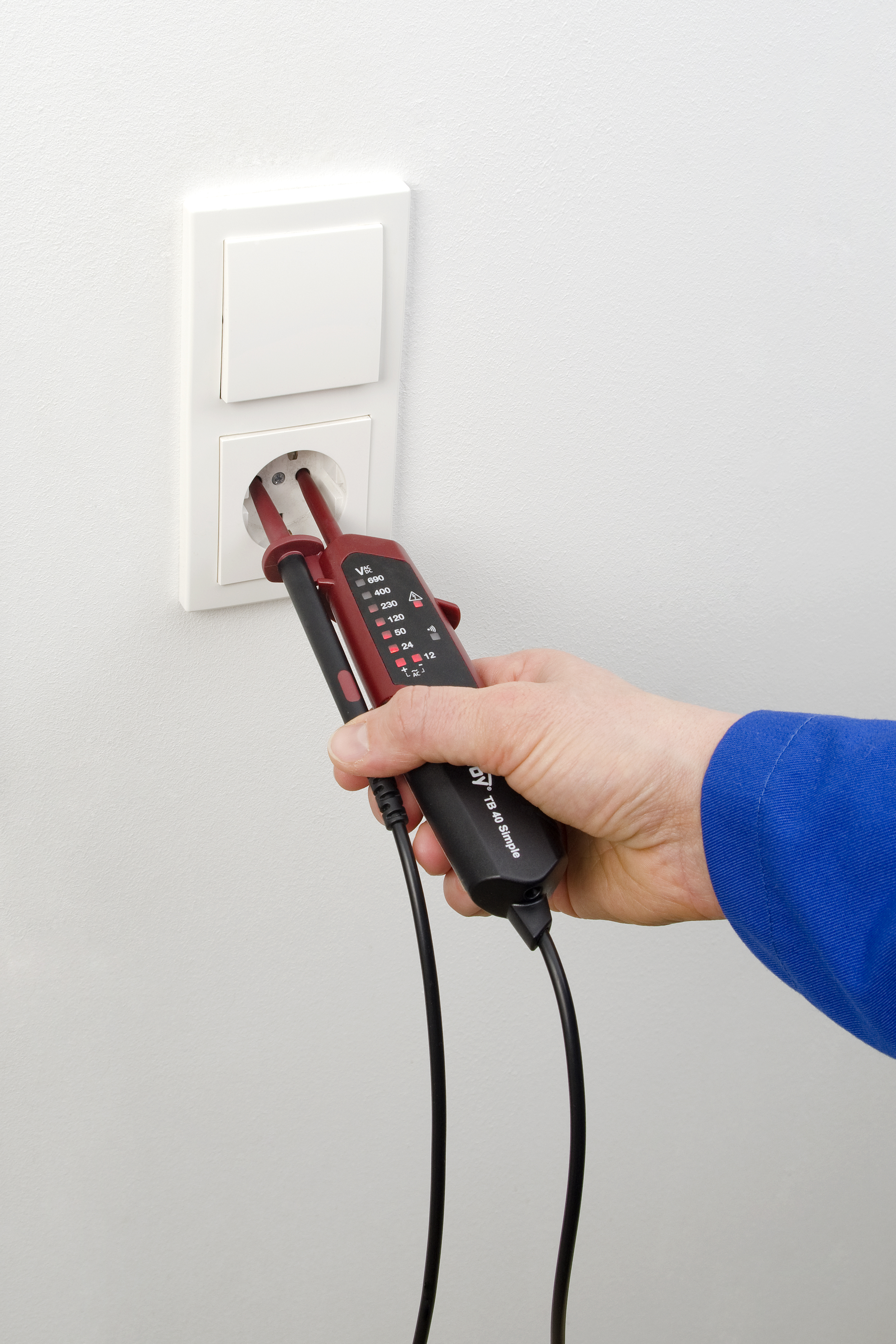

- Phase search against the protective earth conductor
- Continuity test up to 650 kΩ
- Easy handling
- CAT IV 300 V/ CAT III 600V
Specifications
| Technical Data | TESTBOY 40 simple |
|---|---|
| Display: | Optical, 10 LEDs |
| Overload Category: | CAT IV 300 V/ CAT III 600 V |
| Voltage Test: | 12 - 690 V AC/DC |
| Continuity Test: | Yes, acoustic up to 650 kΩ |
| Polarity: | Yes (+,- LED) |
| Auto power-off function: | Yes |
| Housing: | Impact/break resistant plastic |
| Dimension: | 210x57x25mm |
| Weight: | 120 g |
| Colour: | red/black |
