Thermometer

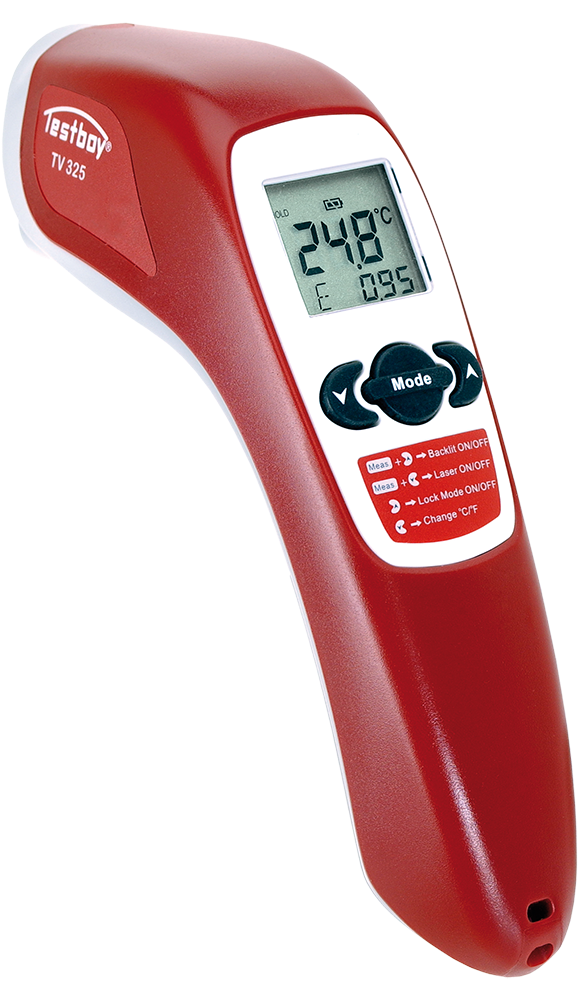

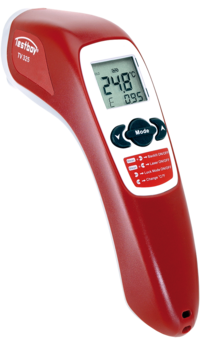

TESTBOY TV 325

Infrared thermometer with adjustable emission value

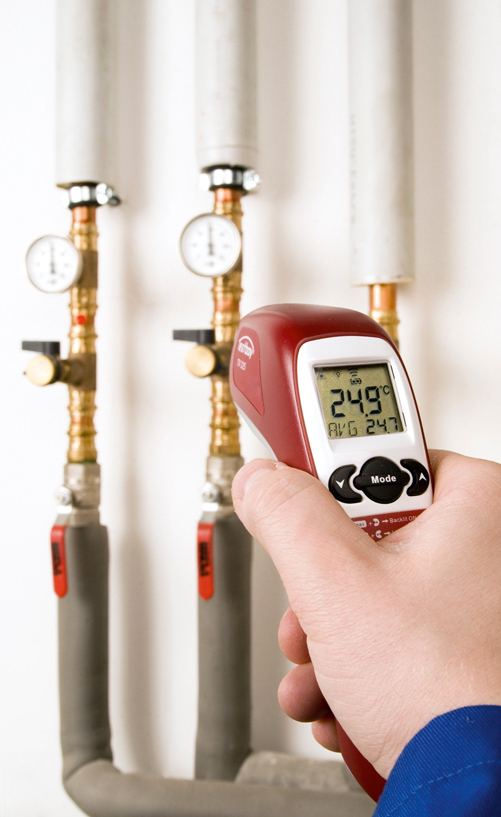

The infrared thermometer, Testboy TV 325, impresses with its many useful functions, for example, Min/Max value memory, adjustable emissivity and averaging. In addition, it also has a connection for conventional K-Type sensor and, thus, is equally suitable for use in industrial companies, car workshops, heating, refrigeration and air-conditioning systems or the electric trade.

How you benefit

  • Min/Max value memory/alarm function
  • Adjustable emissivity
  • Averaging
  • Connection for K-Type sensor

Specifications

Technical DataTESTBOY TV 325
Display:LCD with backlighting
Detector:Thermopile
Measuring optic:12 : 1
Measurement range:-60 – 500 °C, -76 – 932 °F infrared
-64 – 1400 °C, -83,2 – 1999 °F with K-Type sensor
Response time:< 0.5 s
Emissivity:0.95 specified; adjustable from 0.10 – 1.00 in 0.01 increments
Auto power-off:After approx. 10 s
Operating temperature:0 – 50 °C, 32 – 122 °F
Laser point:Selectable
Measurement accuracy infrared:Object 15 – 35 °C, ambient 25 °C:
±1,0°C, ±1,8°F
Object -33 – 15 °C and 35 – 500 °C, ambient 23 °C ±3 °C:
±2°C, 4°F or ±2 %, the greater value applies
Measurement accuracy K-Type sensor:Ambient 23°C ± 6°C:
±1 °C, 1,8 °F or ±1 %, the greater value applies
Min/Max value memory:With alarm function
Averaging:Yes
Humidity:10 – 90 % RH
Resolution:0,1° (-9,9 – 199,9°)
Temperature probe:Option to connect K-Type sensor
Power Supply:2 × 1.5 V AAA, LR03
Data hold:Yes
Dimension:49 × 133 × 146 mm
Weight:222 g
Colour:red/grey
Scope of delivery:Incl. batteries, system carrying case and K-Type sensor
