Thermography

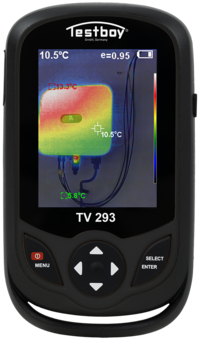

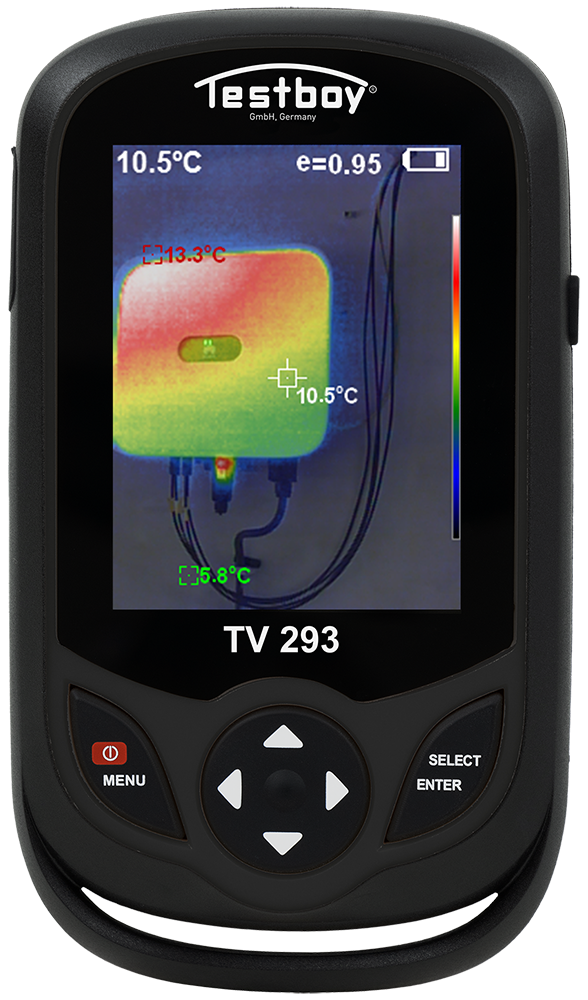

Testboy TV 293

IR Thermal Imaging Camera

The cell phone was the revolution in telephony. An infrared thermal imaging camera, such as the TV 293, which is as handy as a mobile phone and similarly easy to operate, revolutionizes thermography. The handheld thermal imaging camera TV 293 is nevertheless versatile. It´s size does not suggest it, but it contains all the advantages of a large thermal imaging camera. It has adjustable emissivity, 5 color palettes and 9 Hz technology. A digital camera with 300,000 pixels for image overlay from thermal image to real image on a large LCD display round out the applications of this smart device.

How you benefit

  • Digital camera for image overlay
  • integrated colour display
  • easy operation
  • universally usable
  • robust and reliable
  • integrated flash memory with Micro-USB-Interface

Specifications

Technical DataTestboy TV 293
Dimensions:140 x 80x 28 mm
Resolution:220 x 160 Pixels
Accuracy:±2 °C or ±2 % (the greater value applies)
Operating temperature:0–45 °C
Storage temperature:-20–60 °C
Humidity:<= 85 % non condensing
Field of view/min focus distance:27° x 35° | 0,1 5 m fix
Detector data acquisition:9 H z
Spectral range:8–14 μm
LC-Display :3,2" Colour-LCD
CCD-camera:300.000 Pixels
Temperature Range:-20 –300 °C / -4–572 °F
Emissivity correction:variabel from 0,1 bis 1,0 (in 0.01 steps)
Colour palette:5 (Rainbow, Iron Oxide-red , Cold-Blue, Greyscale (white hot) and Greyscale (black hot)
Further settings:Date, T ime, Tem perature unit, Hot-/Cold-Spot
Storage medium:Integrated Flash-memory with Micro-USB-Interface
File format-thermal:JPG
Power saving:automatic switch-off (OFF/5/20 minutes)
Scope of Supply:incl. carrying case, Carrying strap and charger
Weight:210 g
Testboy TV 293
