Thermography

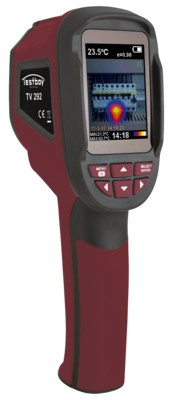

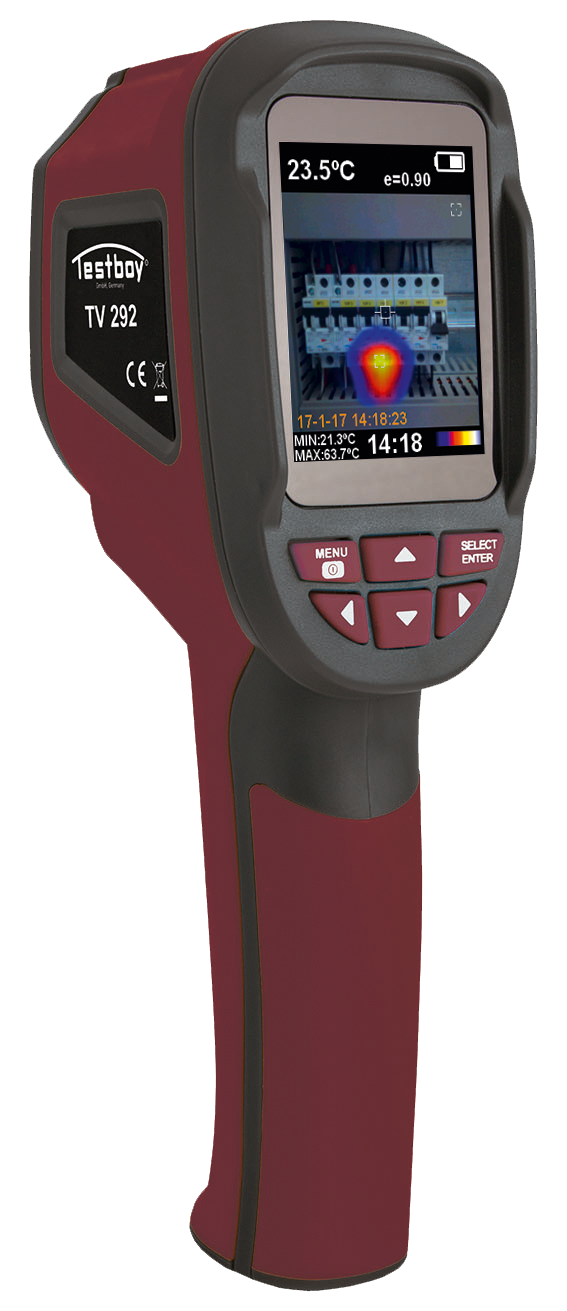

TESTBOY TV 292

Basic IR Thermal imager

The thermal imager TV 292 can be universally used. The TV 292 closes the gap between IR-Thermometer and the IR-Thermal imager. It provides you the advantages from the thermal imaging technology by detection of temperature problems, that can’t be found with the typical IR-Thermometers.

How you benefit

  • Digital camera for image overlay
  • Integrated color display
  • Easy handling
  • Universally application
  • Robust and reliable

Areas of application

  • Preventive servicing
  • Leak detection and localization of heating pipes
  • Process monitoring

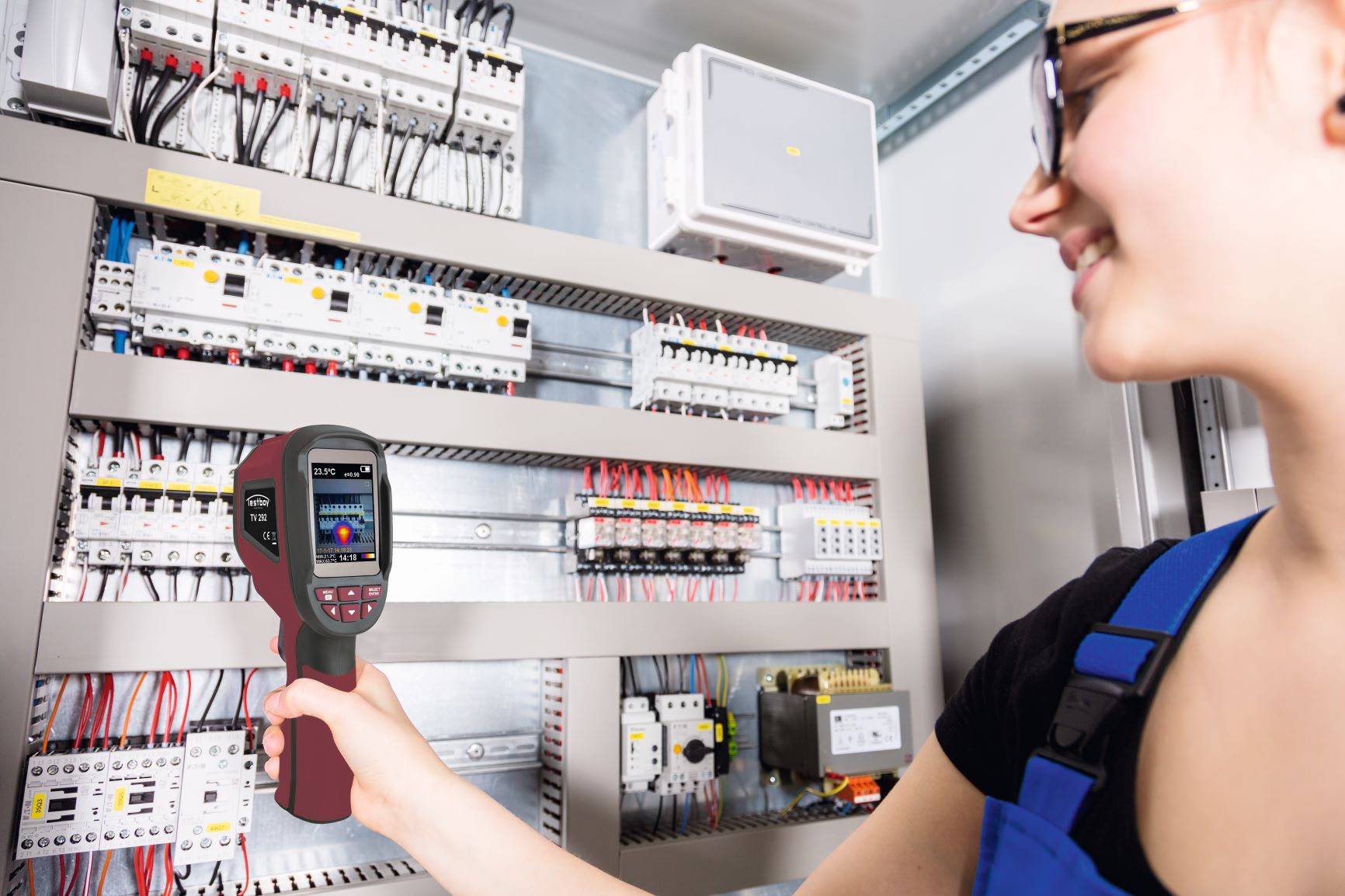

  • Thermal control of electrical distributions

Specifications

Technical DataTESTBOY TV 292
Dimensions:215 x 92 x 61 mm
Resolution:60 x 60 Pixel
Accuracy:±2 °C or ±2 % (the greater value applies)
Operating temperature:-5–40 °C / 23–104 °F
Storage temperature:-20–55 °C / -4–131 °F
Humidity:≤90 % non-condensing
Thermal sensitivity NETD:0,15 °C / 0,27 °F
Field of view/min focus distance:20° x 20° | 0,5 m fix
Detector data acquisition:6 H z
Spectral range:8–14 μm
LC-Display :2,5” Color-LCD
CCD-camera:300.000 Pixel
Temperature Range:-20 –300 °C / -4–572 °F
Emissivity correction:Variable from 0,1 to 1,0 (in 0,01 increments)
Colour palette:6 (Iron Bow, Rainbow, Rainbow High Contrast, Grayscale (White Hot) and Grayscale (Black Hot))
Further settings:Date, time, temperature unit
Storage medium:MicroSD-Card
File format-thermal:BMP
Accumulator type:4x 1,5 V AA Batteries
Power saving:Auto-Power-Off after 12 min.
Scope of Supply:Transportation case and Batteries
Weight:320 g
TESTBOY TV 292
