Current Measurement Clamps

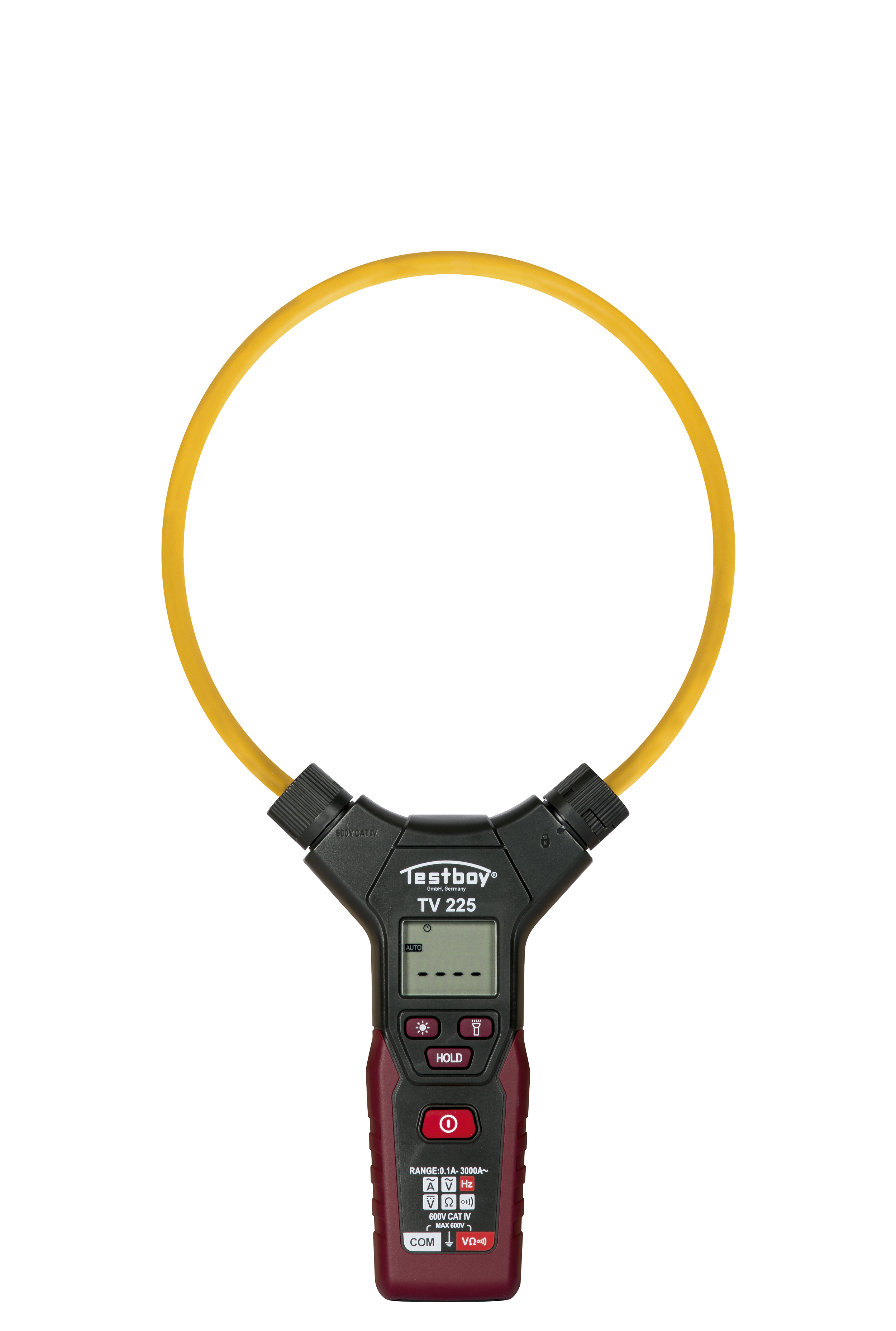

TESTBOY TV 225

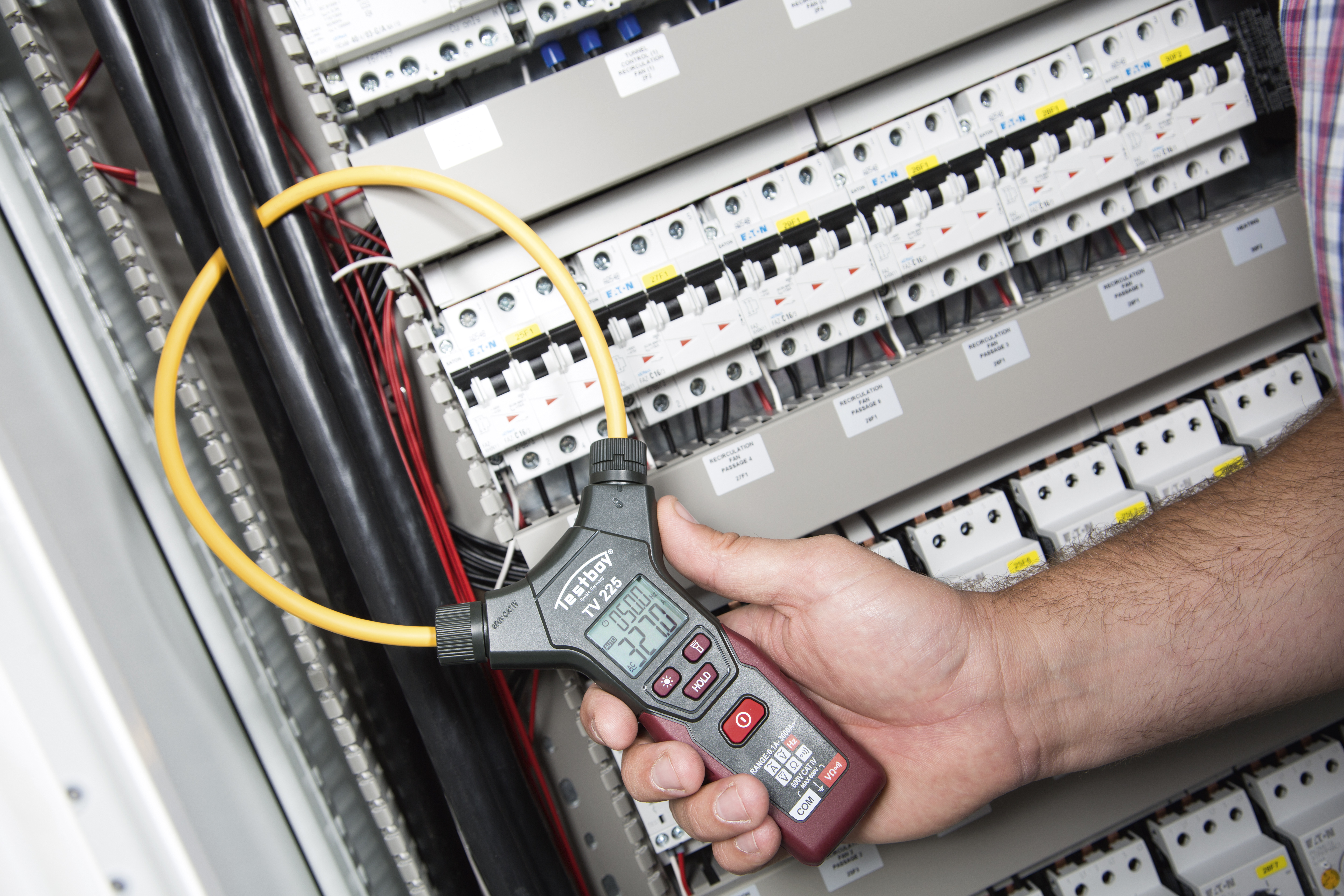

Flexible Clamp Meter

Thanks to its diverse range of measuring functions, the flexible Testboy TV 225 Clamp Meter is suitable for universal use. Useful details such as the large display, the automatic measurement range selection and the measuring point illumination make operation of this instrument particularly convenient and reliable.

How you benefit

  • Large diversity of functions
  • Highly legible LC display
  • LED measuring point illumination
  • Contactless measurement of frequencies
  • T-RMS measuring procedure for non-sinusoidal voltages suitable for higher line cross-sections

Specifications

Technical DataTESTBOY TV 225
Display:LCD with 4 digits
Overload Category:CAT IV 600 V
Data hold:Yes
AC Voltage:TRMS - (40 – 2000 Hz ) - (smallest resolution 0,001 V)
6 V ±1,5 %, ±5 Digits
60 V ±1,5 %, ±5 Digits
600 V ±1,5 %, ±5 Digits
AC Current:TRMS - (40 – 1000 Hz) - (smallest resolution 10 mA)
60 A ±3,0 %, ±5 Digits
600 A ±3,0 %, ±5 Digits
3000 A ±3,0 %, ±5 Digits
DC Voltage:(smallest resolution 0,001 V)
6 V ±1,0 %, ±3 Digits
60 V ±1,0 %, ±5 Digits
600 V ±1,0 %, ±5 Digits
Resistance:6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ ±1,0 %, ±3 Digits
Continuity Test:Audible signal if resistance < 50 MΩ
Measurement position lighting:LED
Frequency by clamp:40 –1000 Hz ±0,5 %, ±5 Digits
Frequency by clamp - Accuracy:(smallest resolution 0,1 Hz) > 1 A AC rms
Frequency by plugs:40 Hz –10 kHz ±0,5 %, ±5 Digits
Frequency by plugs - Accuracy:(smallest resolution 1 Hz) > 0,5 V AC rms
Input resistance:2 MΩ
Power Supply:3 x 1,5 V AAA, LR03
Resistance:6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ ±1,0 %, ±3 Digits
Input resistance:2 MΩ
Dimension:324 x 178 x 30 mm
Weight:210 g
Colour:Red/black
Scope of delivery:Incl. test leads, batteries and system carrying case
TESTBOY TV 225
