Current Measurement Clamps

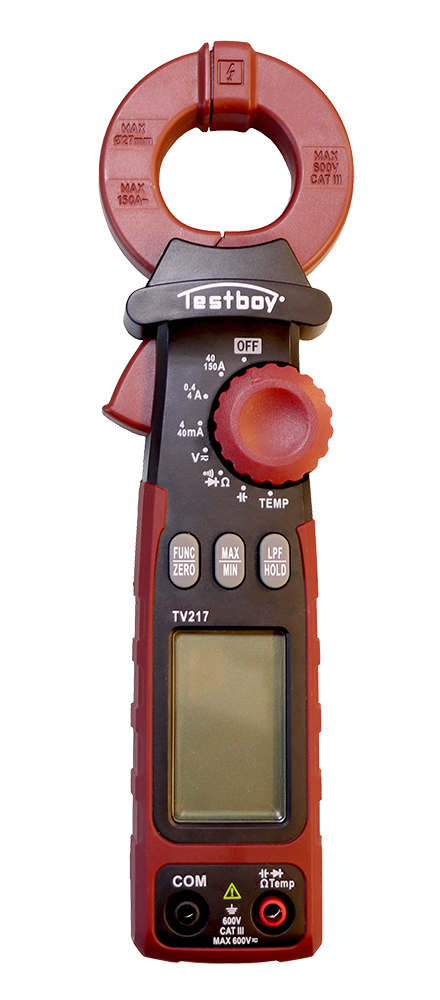

TESTBOY TV 217

Leakage current clamp

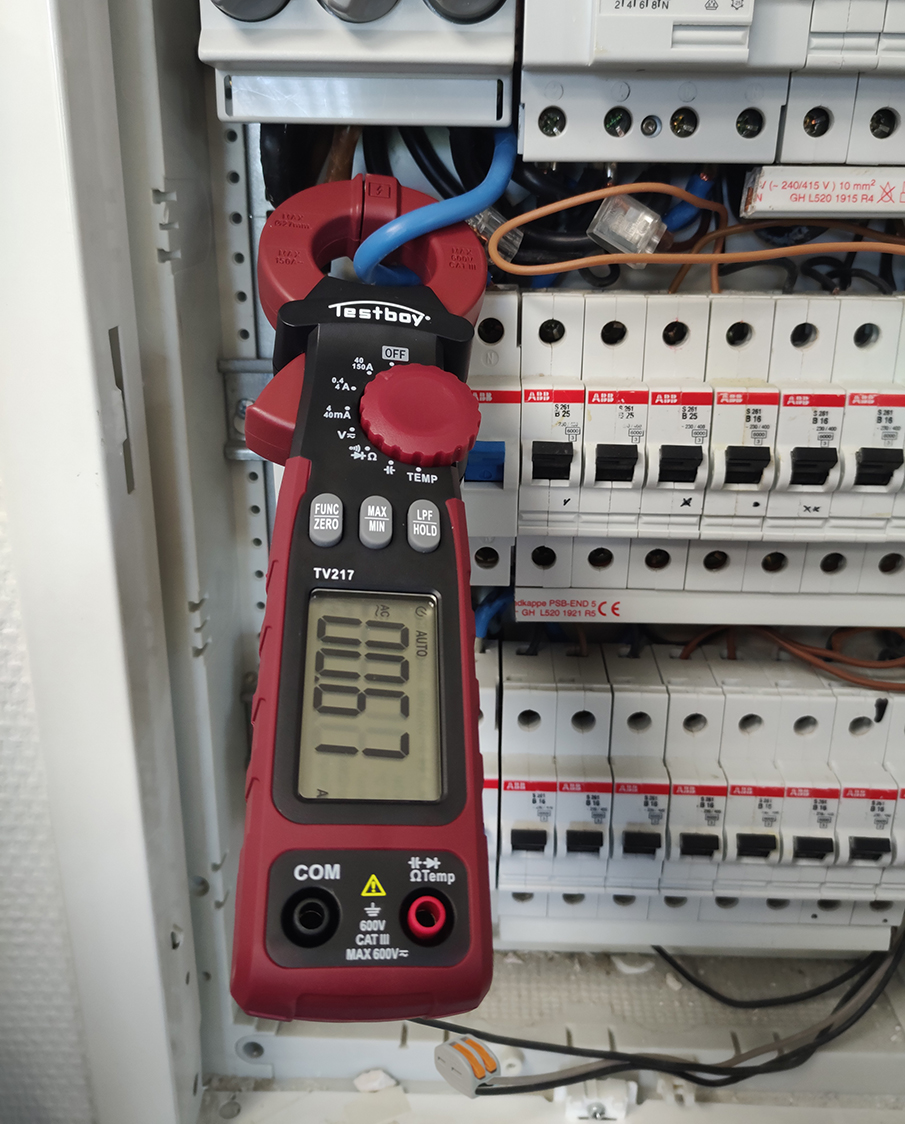

The Testboy TV 217 leakage current clamp demonstrates its capabilities in the measurement of protective conductors and touch currents of installations, permanently connected devices and three-phase consumers. Its extensive multimeter functions make it a multi-talent for a wide range of applications, with safe and comfortable ergonomics.

How you benefit

  • Wide range of functions
  • Easy-to-read LCD
  • Low pass filter mode
  • T-RMS measurement method for non-sinusoidal voltages

Specifications

Technical DataTESTBOY TV 217
Display:LCD with 4 digits
Overload Category:CAT III 600 V
Diode Test:Yes
Standard:EN 61010-01; EN 61010-2-032; EN 61010-02-033;
Data hold:Yes
AC Voltage:(TRMS) (smallest Resolution 1 MV)
4 V, 40 V, 400 V, 600 V±1,0 % ±3 digits
DC Voltage:(smallest Resolution 1 MV)
4 V, 40 V, 400 V, 600 V ±0,5 % ±4 digits
Resistance:(smallest Resolution 100 MΩ)
400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ±1,0 % ±3 digits
Continuity Test:Yes, signal tone at resistance < 40 Ω
Ranging:Manual
Resistance:(smallest Resolution 100 MΩ)
400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ±1,0 % ±3 digits
Dimension:213 x 62 x 38 mm
Weight:238g (incl. batteries)
Scope of delivery:Incl. Test leads, Batteries and carrying case

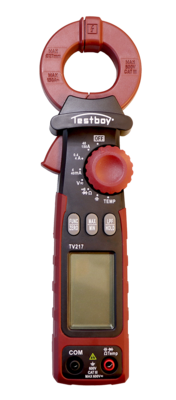

TESTBOY TV 217
