Current Measurement Clamps

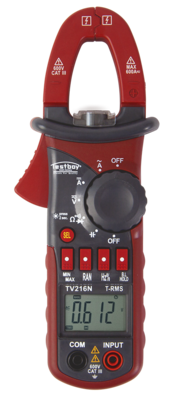

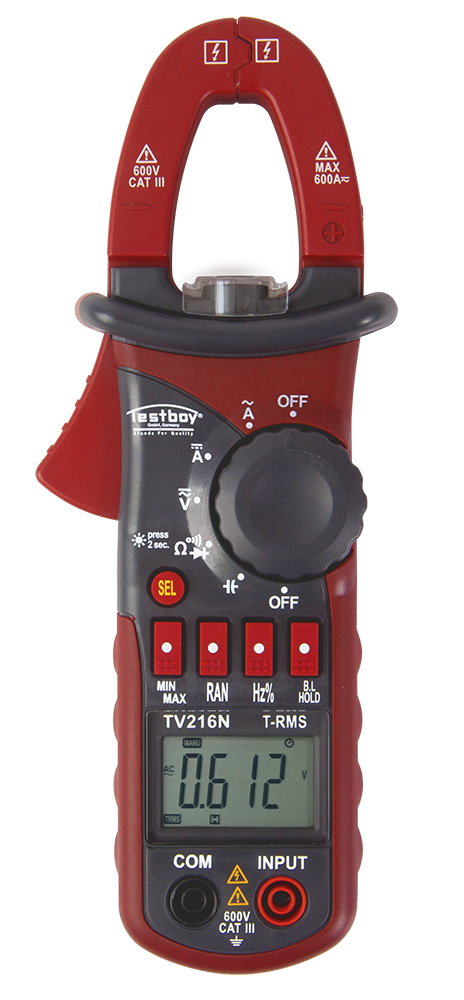

TESTBOY TV 216N

Digital clamp meter

Due to its variable measuring functions, the digital clamp meter, Testboy TV 216N, can be operated universally. Useful details, such as the large display, manual or automatic ranging and measurement position lighting, makes operation particularly easy and reliable.

How you benefit

  • Large range of functions
  • Easily legible LCD
  • LED Measurement position lighting
  • Contactless frequencies and probe rate
  • T-RMS measurement procedure for non-sinus voltages

Specifications

Technical DataTESTBOY TV 216N
Display:LCD with 4 digits
Overload Category:CAT III 600 V
Diode Test:(smallest resolution 1 mV)
Test current ~1 mA
test voltage ~3,3 V
Standard:EN61010-2-032 (VDE 0411-2-032)
Data hold:Yes
AC Voltage:(40–400 Hz, smallest resolution 100 μV)
bis 600 mV ±1,5 %, ±10 Digits
6 V, 60 V ±1,2 %, ±5 Digits
600 V ±1,5 %, ±10 Digits
AC Current:(40–400 Hz, smallest resolution 10 mA)
60 A, 600 A ±3,0 %, ±10 Digits
DC Voltage:(smallest resolution 100 μV)
600 mV, 6 V, 60 V ±0,8 %, ±3 Digits
600 V ±1,0 %, ±5 Digits
DC Current:(smallest resolution 10 mA)
60 A, 600 A ±3,0 %, ±10 Digits
Resistance:600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ ±1,2 %, ±2 Digits
60 MΩ ±2,0 %, ±5 Digits
Continuity Test:Audible signal if resistance <30 Ω
Measurement position lighting:LED
Frequency by clamp: (smallest resolution 100 mHz)
600 Hz, 1 kHz ±1,5 %, ±5 Digits
> 1 A AC rms
Frequency by plugs:(smallest resolution 100 mHz)
600 Hz, 6 kHz, 10 kHz ±1,5 %, ±5 Digits
> 0,2 V AC rms
Sampling rate:10–95 %, ±3,0 %, > 1 A AC rms
Sampling rate - Frequency range:10 Hz to 1 kHz
Sampling rate - Capacitance measurement:Up to 60 mF
Diodetest - Continuity test:Audible continuity signal below 30 Ω
Ranging:Automatic and manual
Input resistance:10 MΩ
Power Supply:3 x 1,5 V AAA, LR03
Resistance:600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ ±1,2 %, ±2 Digits
60 MΩ ±2,0 %, ±5 Digits
Input resistance:10 MΩ
Dimension:220 × 75 × 35 mm
Weight:340 g
Colour:Red/black
Scope of delivery:Incl. test leads, batteries and system carrying case
