Socket Outlet Testers

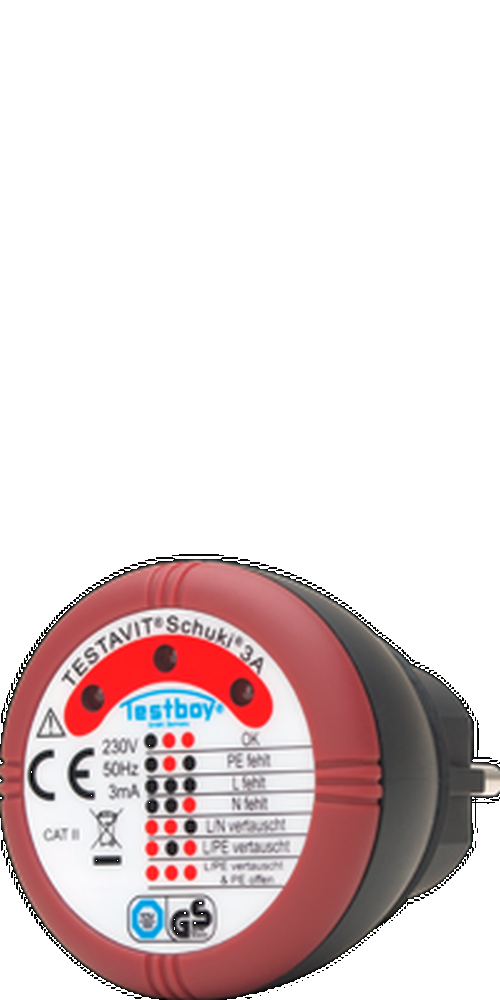

TESTAVIT SCHUKI 3A

Socket outlet testers

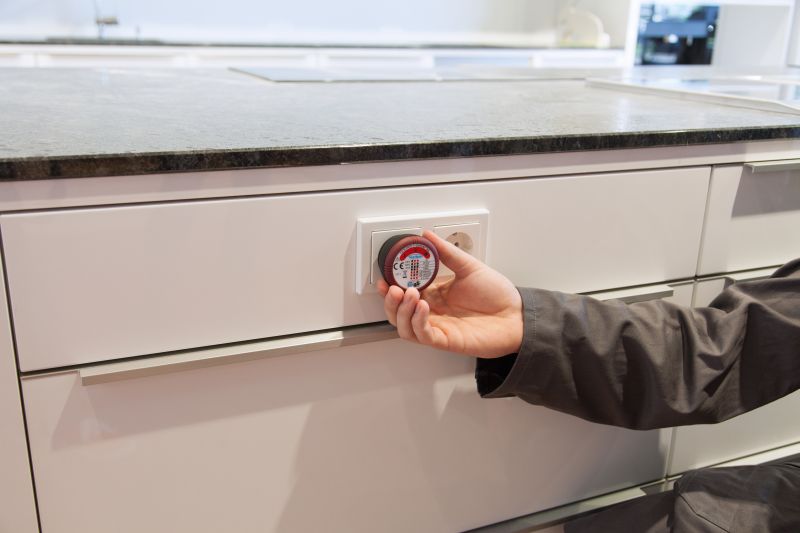

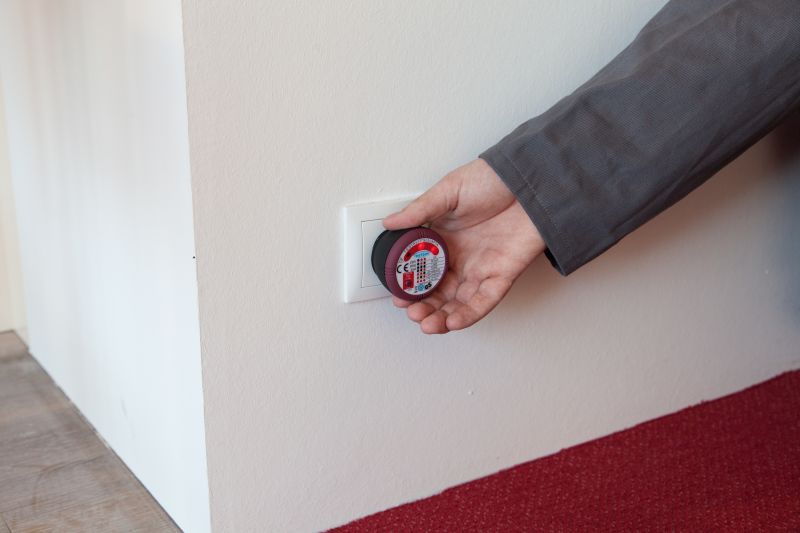

The Testavit Schuki 1A and 3A socket outlet testers are essential test instruments for all professional tradesmen. They indicate all connection errors that are a risk to life at the sockets, cable drums and connection cables in 230-V installations for specific light combinations of the LEDs. Thereby, installations can be checked quickly and safely.

How you benefit

  • | Quick and safe checking of installations

Specifications

Technical DataTESTAVIT SCHUKI 3A
Display:Optical, LED
Operating Voltage:230 V, 50 Hz
RCD Triggering:No
Error Current:No
Protection:IP 40
Overload Category:CAT II 300 V
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Dimension:60 × 60 mm
Weight:40 g
Scope of delivery:Incl. operating instructions
TESTAVIT SCHUKI 3A
