Socket Outlet Testers

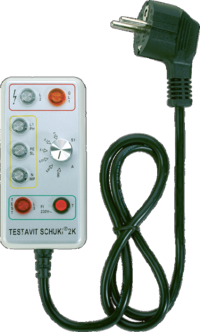

TESTAVIT SCHUKI 2K

Socket test instrument

Using the Testavit Schuki 2K, sockets in 230-V installations can be checked for correct connection of the conductor and an FI test can be carried out. Due to the cable with shockproof plug, this is also easily possible in areas difficult to access.

How you benefit

  • Easy checking of sockets difficult to access
  • FI test with adjustable rated leakage current

Specifications

Technical DataTESTAVIT SCHUKI 2K
Display:Optical, glow lamps
Operating Voltage:230 V, 50 Hz
RCD Triggering:using test button
Error Current:10 mA, 30 mA, 100 mA, 300 mA, 500 mA
Overload Category:CAT II 300 V
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Release Time:200 ms
Dimension:100 × 50 × 75 mm
Weight:250 g
Colour:Grey
Scope of delivery:Incl. operating instructions and system carrying case
TESTAVIT SCHUKI 2K

To Downloads!
