Socket Outlet Testers

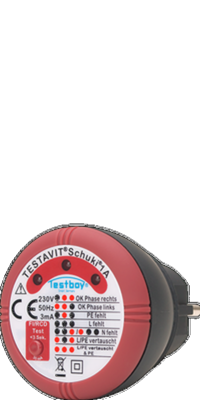

TESTAVIT SCHUKI 1A
Socket outlet testers

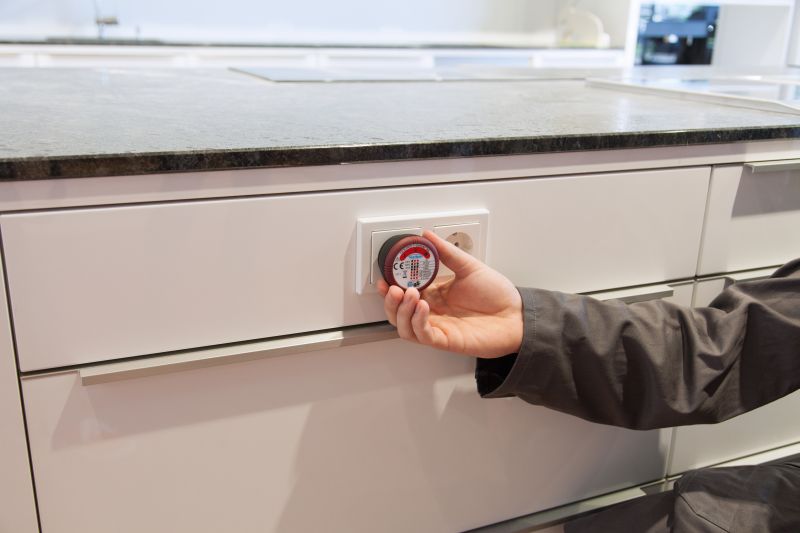

The Testavit Schuki 1A and 3A socket outlet testers are essential test instruments for all professional tradesmen. They indicate all connection errors that are a risk to life at the sockets, cable drums and connection cables in 230-V installations for specific light combinations of the LEDs. Thereby, installations can be checked quickly and safely. The Testavit Schuki 1a also has an FI test function.
How you benefit
- Quick and safe checking of installations
- FI test
Specifications
| Technical Data | TESTAVIT SCHUKI 1A |
|---|---|
| Display: | Optical, LED |
| Operating Voltage: | 230 V, 50 Hz |
| RCD Triggering: | Using test butto |
| Error Current: | 30 mA |
| Protection: | IP 40 |
| Overload Category: | CAT II 300 V |
| Standard: | IEC/EN 61010-1 (DIN VDE 0411) |
| Dimension: | 60 × 60 mm |
| Weight: | 40 g |
| Scope of delivery: | Incl. operating instructions |
