Voltage Tester

TESTBOY 114

Non-contact voltage tester from 12 V AC

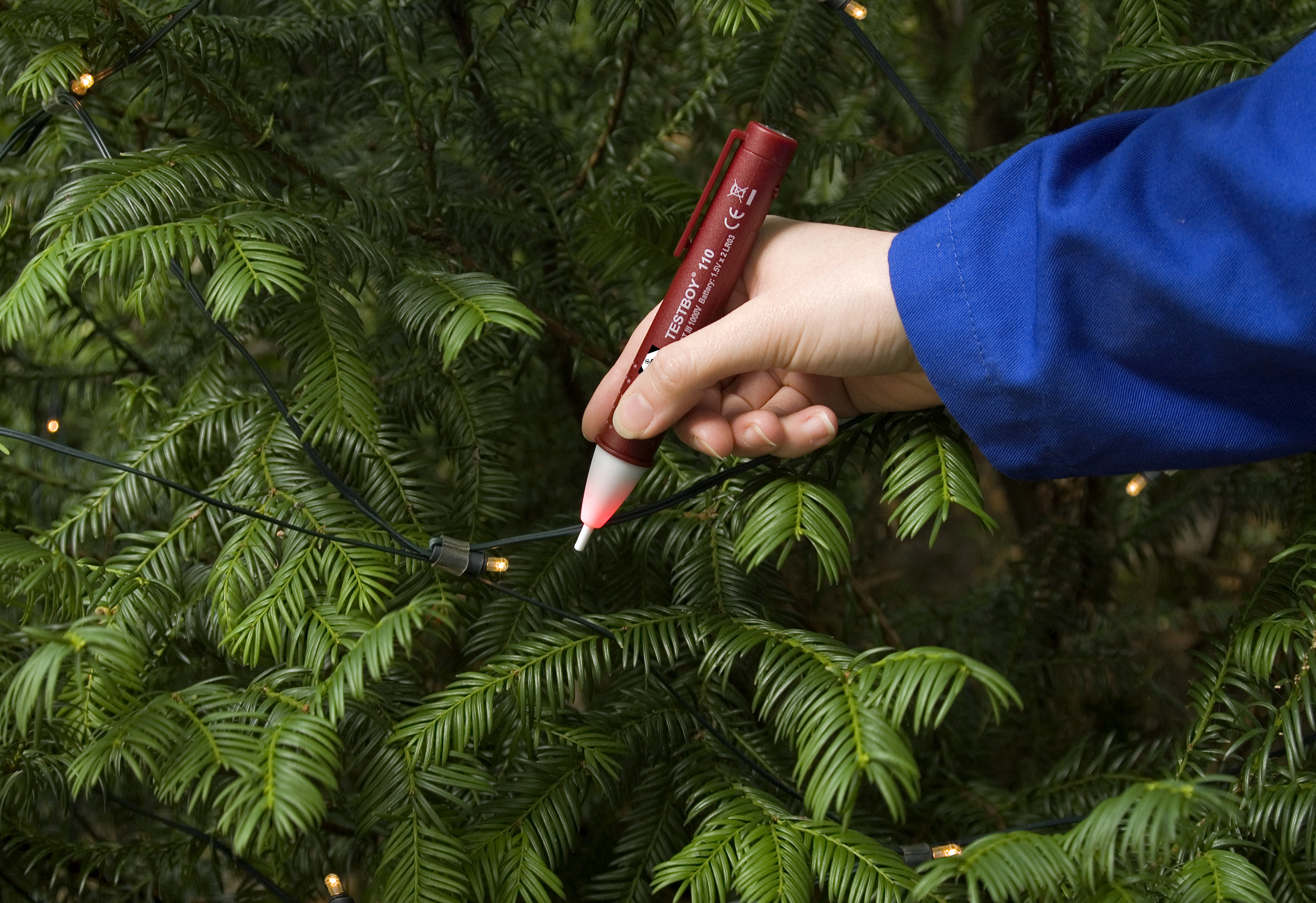

From a voltage of 12 V, the non-contact voltage tester Testboy 114 detects a live conductor, amongst others, also in the low volt systems. Due to the capacitive measurement procedure, invisible brakes in the cables or a defective lamp in a chain of light can be accurately detected within a few seconds.

How you benefit

  • capacitive measurement procedure
  • measurements from 12 V
  • LED torch
  • vibrating indication

Specifications

Technical DataTESTBOY 114
Display:Optical + vibrating
Measurement range:12-1000 V AC
Overload Category:CAT III 1000 V
Integrated LED-torch Lamp:yes
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Housing:ABS synthetic material, resistant to breaking by impact
Dimension:160 x 25 mm
Weight:45 g
Colour:Red
Scope of delivery:incl. batteries
TESTBOY 114
