Voltage Tester

TESTBOY 113

contact-less voltage tester with acoustical signal

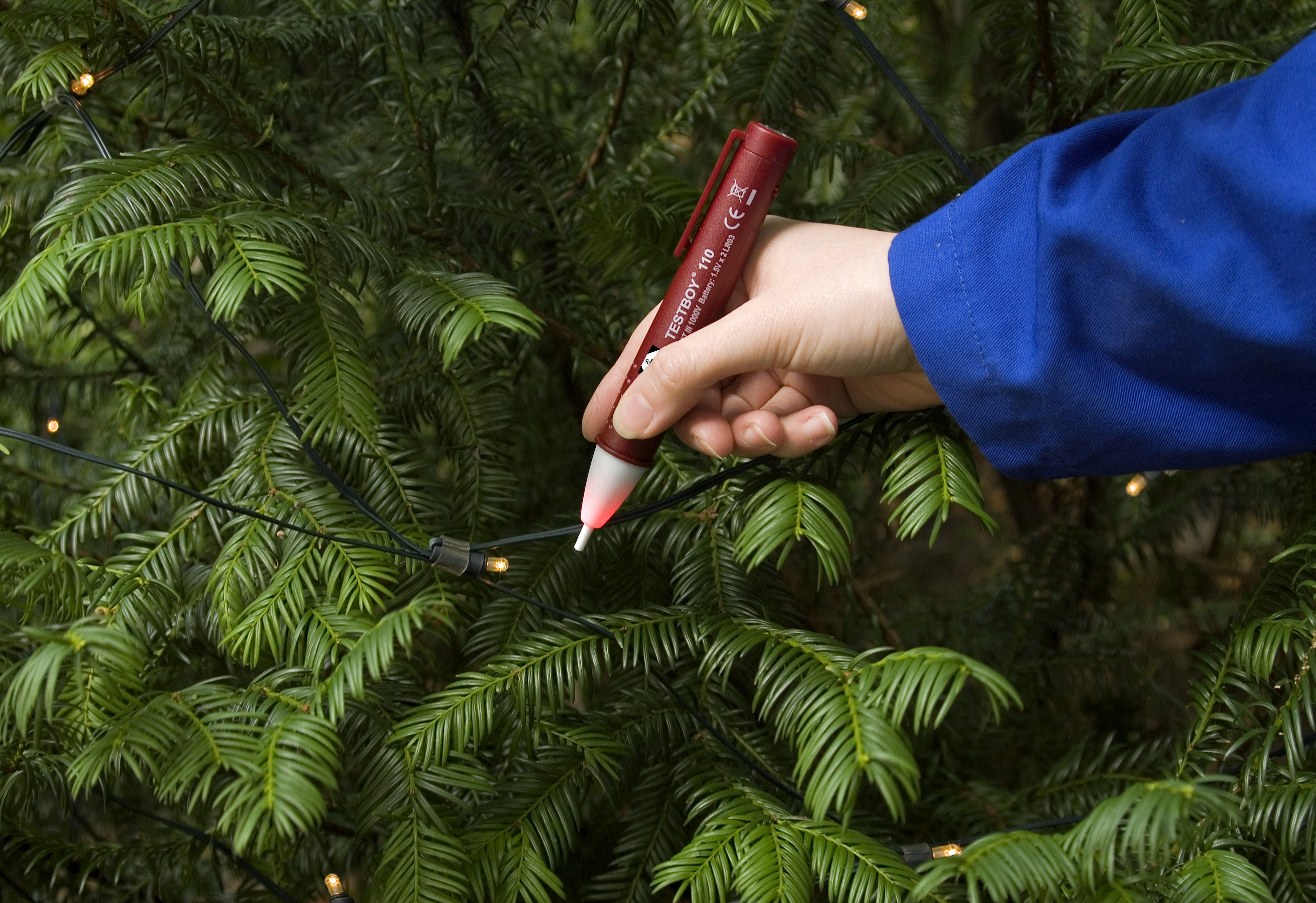

From a voltage of 12 V, the non-contact voltage tester Testboy 113 detects a live conductor, amongst others, also in the low volt systems. Due to the capacitive measurement procedure, invisible brakes in the cables or a defective lamp in a chain of light can be accurately detected within a few seconds.

How you benefit

  • Capacitive measurement procedure
  • Measurements from 12 V
  • LED torch

Specifications

Technical DataTESTBOY 113
Display:Optical + acoustic
Measurement range:12 - 1000V AC
Overload Category:CAT III 1000 V
Integrated LED-torch Lamp:yes
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Housing:ABS synthetic material, resistant to breaking by impact
Dimension:160 x 25 mm
Weight:45 g
Colour:red
Scope of delivery:Incl. batteries
TESTBOY 113
