Digital Multimeter

TESTBOY 312

Digital multimeter with USB interface

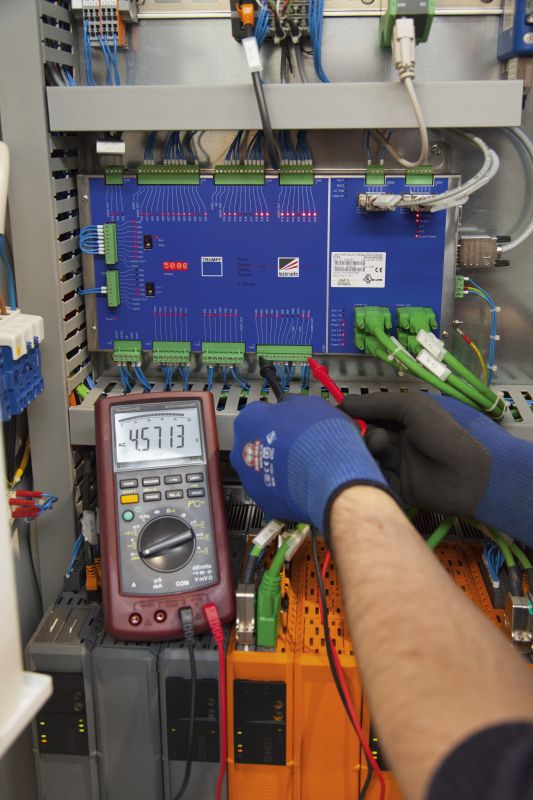

The digital multimeter, Testboy 312, is particularly convincing by its high accuracy in measuring. The extremely effective measuring procedure prevents measuring errors in the case of non-sinusoidal or non-linear curves. In addition, it also has important functions, such as relative, Min/Max and frequency measurement and a USB interface, through which all measurement results can be evaluated using Windows software.

How you benefit

  • Large LCD with bar chart display
  • True RMS
  • USB interface

Specifications

Technical DataTESTBOY 312
Display:44 mm large, illuminated LCD, 4 ¾ digit
Overload Category:CAT III 1000 V
Diode Test:Forward voltage in mV
Standard:IEC/EN 61010-1, IEC/EN 61010-2-033
Data hold:Yes
Dimensions:200 x 100 x 40 mm
AC Voltage:50 mV, 500 mV, 50 V, 500 V, 1000 V ; ± 0,5 %
AC Current:500 μA, 5 mA, 500 mA, 5 A, 10 A ; ± 1,5 %
Auto power-off function:15 minutes
DC Voltage:50 mV, 500 mV, 50 V, 500 V, 1000 V ; ± 0,5 %
DC Current:500 μ, 5 m, 500 m, 5, 10 A ; ± 0,5 %
Continuity Test:With acoustic signal
Duty Cycle:5 Hz–500 kHz, 1–99 %
Capacity:Up to 5000 μF
Linear Frequency:10 Hz – 200 kHz ± 0.006%, Vpp 10 mV sensitive
Logic Frequency:5 Hz – 5 MHz ± 0.006%, Vpp 2 – 5 V rectangular
PC interface:USB interface with Windows software
Resistance:500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ ; ± 0,1 %
50 MΩ ; ± 0,5 %
Ranging:Automatic and manual
Dimension:200 x 100 x 40 mm
Weight:600 g
Colour:red
Scope of delivery:Incl. operating instructions, test leads, Windows software on CD-ROM, batteries and USB cable
