Digital Multimeter

TESTBOY 2200

Digital multimeter with cable break detector and LED torch

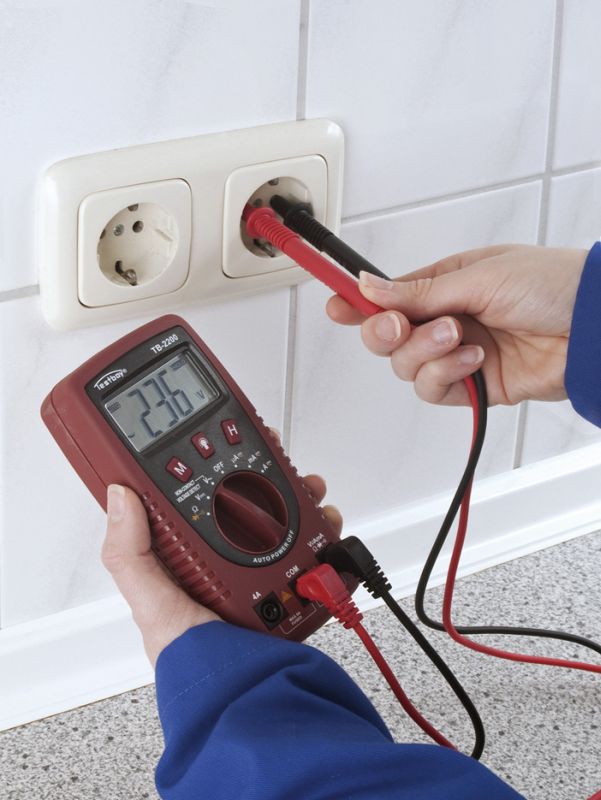

The variable digital multimeter, Testboy 2200, has all functions for universal operation in the sectors of electrical installation, service and industry. It is easy to operate and the safety of the user is increased due to the integrated LED torch, as well as the non-contact cable break detector installed.

How you benefit

  • Auto range

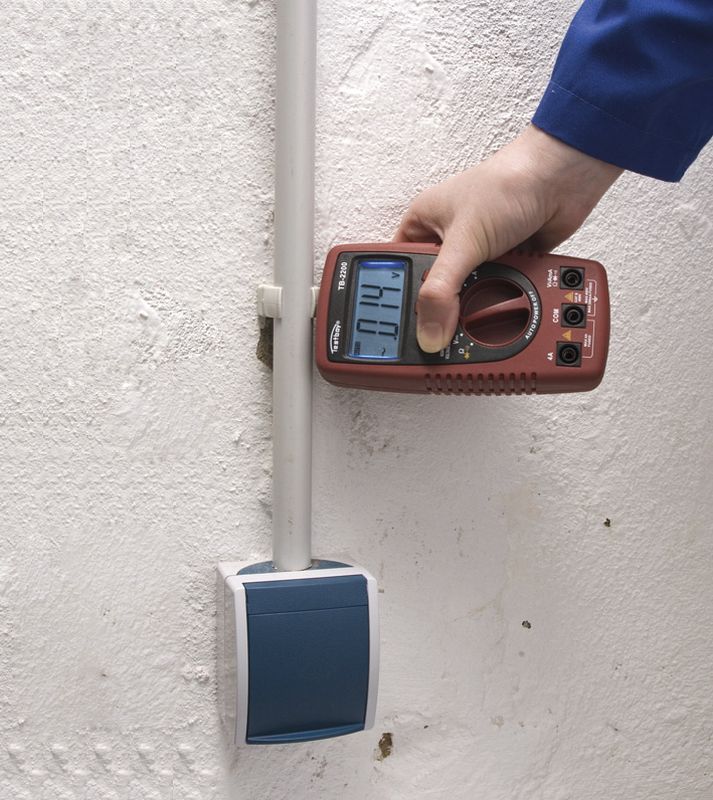

  • Non-contact cable break detector
  • LED torch

Specifications

Technical DataTESTBOY 2200
Overload Category:CAT II 400 V, CAT III 300 V
Diode Test:Test current 0.6 mA
Off-load voltage typ. 1.5 V
Standard:IEC/EN 61010-1, IEC/EN 61010-2-03
Dimensions:140 x 70 x 35 mm
AC Voltage:2 V, 20 V ; ±1,5 %, ±5 Digits
200 V, 300 V ; ±1,5 %, ±5 Digits
AC Current:200 μA, 2000 μA ; ±1,3 %, ±5 Digits
4 A ; ±1,5 %, ±8 Digits
Auto power-off function:15 minutes
Non-contact voltage test:100–600 V AC
Operating temperature range:0–40 °C (32–104 °F)
DC Voltage:200 mV ; ±0,5 %, ±3 Digits
2 V, 20 V, 200 V, 300 V ; ±0,8 %, ±5 Digits
DC Current:200 μA, 2000 μA ; ±1,0 %, ±3 Digits
4 A ; ±1,2 %, ±5 Digits
Continuity Test:Audible signal if resistance <50 Ω
Input impedance:> 7.5 MΩ, type 10 MΩ (AC V & DC V)
Storage temperature range:-10 – 50 °C (14 – 122 °F)
LED torch:White high-performance LED
Maximum input voltage:300 V AC/DC
Fuses:µA-/mA-range F 200 mA / 500 V
4 A-range F4 A/ 500 V
AC V bandwidth:50 – 400 Hz
Resistance:200 Ω ; ±1,0 %, ±5 Digits
2 kΩ, 20 kΩ, 200 kΩ ; ±1,0 %, ±5 Digits
2 MΩ ; ±1,0 %, ±5 Digits
20 MΩ ; ±1,8 %, ±5 Digits
Weight:250 g incl. batteries
Scope of delivery:Incl. test leads CAT III, system carrying case, batteries
