Testboy 30

Fuse finder

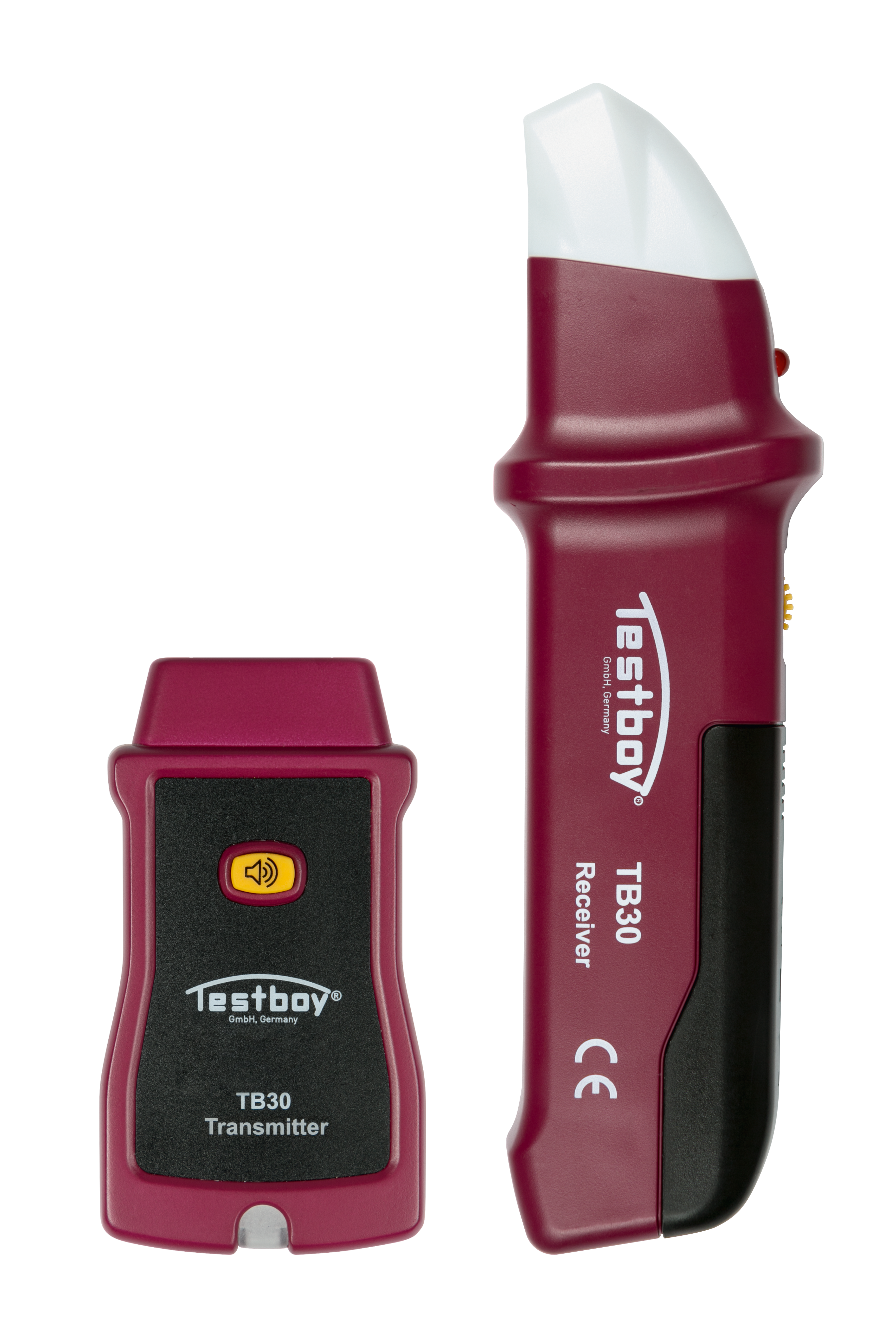

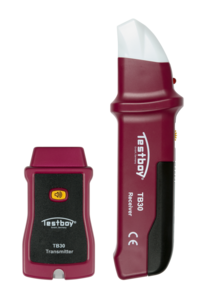

With the fuse finder Testboy 30 can circuit breakers be reliably identified and assigned to the corresponding socket of the respective circuit. The device set consists of two units: the transmitter and the receiver. The receiver can also be used as a contactless voltage tester.

How you benefit

  • Breakage and impact-resistant ABS housing
  • Automatic switch between testing and searching mode
  • Visual and acoustic indication

Specifications

Technical DataTestboy 30
Overload Category:CAT II 300 V
Standard:EN 61010-1
Power Supply:1 x 9 V 6LR61
Dimension:Receiver: 190 x 54 x 37 mm
Transmitter: 95 x 56 x 30 mm
Weight:Receiver: 130 g incl. batteries
Transmitter: 85 g
Colour:Red/black
Scope of delivery:Carrying case
Testboy 30
