Products

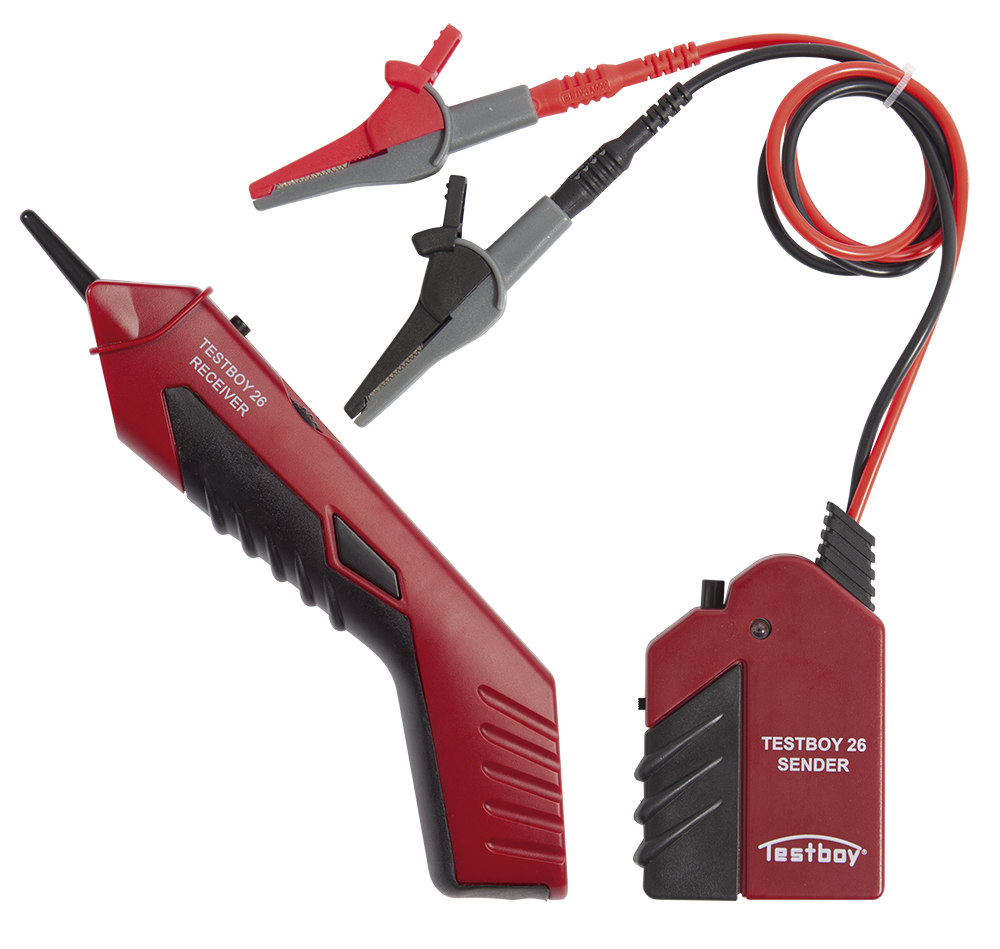

TESTBOY 26

Cable detector set with integrated LED torch

The cable detector, Testboy 26, makes it easier to find cables in the wall and cable ducts. Here, an adapter or carrier signal from the transmitter is modulated by means of crocodile clips or the adapter to one end of the cable. The other end of the cable can then be found quickly and precisely with the receiver without contact or having to strip the cable insulation. Two-core cables can also be exactly identified in telecommunication and network technology.

How you benefit

  • Variable setting of the volume
  • Maximum cable length 8000 m (unloaded)
  • LED flashlight

Specifications

Technical DataTESTBOY 26
Display:Continuous or alternating tone
Integrated LED-torch Lamp:Yes
Power Supply:2 x 9 V Block, 6LR61
Dimension:230 x 55 x 23 mm (receiver)
55 x 57 x 23 mm (transmitter)
Weight:244 g
Colour:Red/black
Scope of delivery:Incl. system carrying case, operating instructions and batteries, adapter set with coax, F and RJ11-adpater
TESTBOY 26
