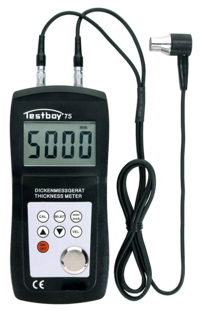

TESTBOY 75

Ultrasonic thickness meter

Using an ultrasonic sensor, the material thickness tester, Testboy 75, accurately determines the thicknesses of the materials steel, aluminium, copper, brass, quartz glass, PVC, zinc, cast iron, polyethylene and grey cast iron. All other materials can also be measured, due to the option of setting the resonance frequency. Thereby, it is suitable for many applications in the car sector, quality assurance and industry.

How you benefit

  • Large measurement range
  • High accuracy of measurement
  • Adjustable resonance frequencies

Specifications

Technical DataTESTBOY 75
Display:LCD with 4 digits
Measurement range:1,2–200 mm ; ± 0,5 mm
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Resolution:0,1 mm
Minimum Area:Ø 5 mm
Operating temperature:0–50 °C
Materials:Steel, aluminium, copper, brass, quartz glass, PVC, zinc, cast iron, polyethylene, grey cast iron etc.
Resonance frequency:500–9000 m/s
Dimension:158 x 74 x 31 mm
Weight:220 g
Colour:Black
Scope of delivery:Incl. batteries, ultrasonic sensor, glycerine and service case
