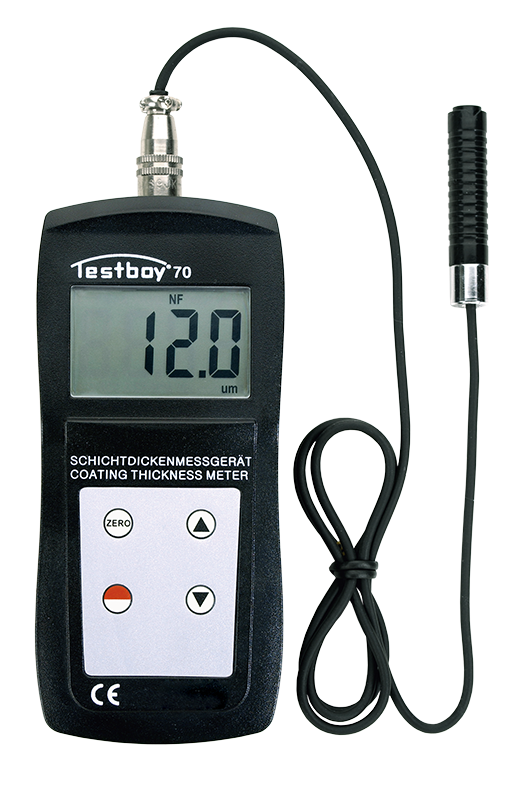

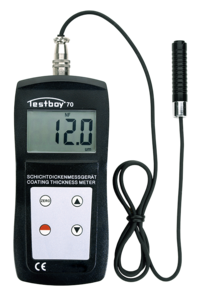

TESTBOY 70

Coating thickness meter

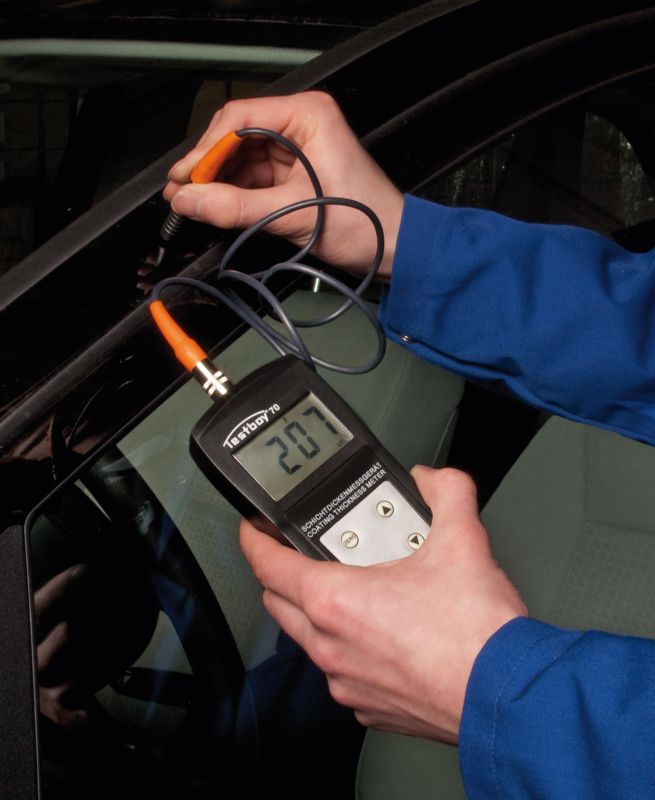

The coating thickness meter, Testboy 70, measures all non-magnetic coatings on steel or iron, such as paintwork, enamel, chrome, copper, zinc, etc. Furthermore, with its special probe, it also enables measurement of all insulating coatings on non-magnetic, metallic surfaces, such as aluminium, copper or brass.

How you benefit

  • Large LCD
  • Interchangeable probe for measurements on magnetic and non-magnetic metallic surfaces

Specifications

Technical DataTESTBOY 70
Display:LCD with 4 digits
Measurement range:0–1250 μm ; ± 2,5 μm, ± 1–3 %
0–50 mil ; ± 1–3 %
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Minimum Area:Ø 5mm
Minimum Curvature Radius:Fe: Convex 1.5 mm
NFe: 3 mm
Minimum Substrate Thickness:Fe: 0.5 mm
NFe: 0.3 mm
Operating temperature:0-40°C
Dimension:158 x 74 x 31 mm
Weight:220 g
Colour:Black
Scope of delivery:Incl. batteries, Fe probe, NFe probe and service case
TESTBOY 70
