Installation- and Device Tester
TESTBOY TV 465
Device tester DIN VDE 0701/0702

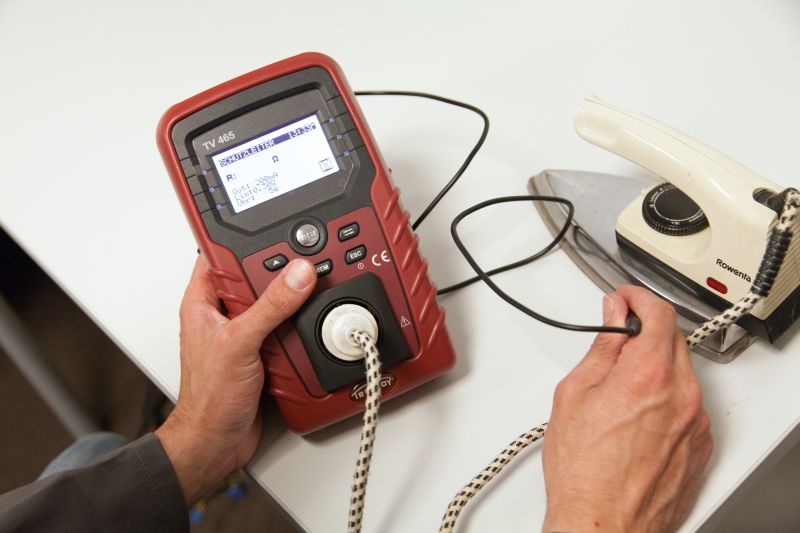

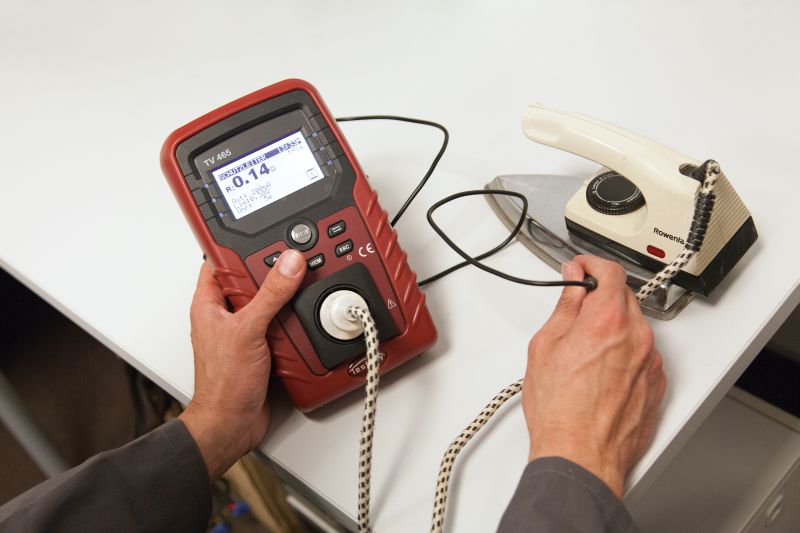

The Testboy TV 465 is a mains-independent device tester for testing mobile devices in accordance with DIN VDE 0701-0702. Due to the test sequences that are preprogrammed or can be self-defined, the menu-assisted help function, as well as the Good/Bad messages, it is particularly easy to operate and, thus, enables quick and uncomplicated tests.
How you benefit
- Testing in accordance with DIN VDE 0701-0702, BGV A3, BetrSichV, ÖVE E 8701/E 8702
- Integrated compensation module
- Menu-guided help function
- Battery capacity sufficient for approx. 2600 test objects (depending on the number of measurements)
- Screening test possible
Specifications
| Technical Data | TESTBOY TV 465 |
|---|---|
| Display: | 128 × 64 pixels with backlighting and integrated Good/Bad indication |
| Overload Category: | CAT II 300 V |
| Power Supply: | 6 × 1.2 V NiMH battery or 6 × 1.5 V AA |
| Measurement range: | Automatic |
| Test voltage: | up to 500 V DC |
| Insulation resistance: | 0–199,9 MΩ |
| Interface: | USB and RS-232 |
| Protective conductor resistance: | 0–1999 Ω |
| Alternative leakage current: | 0 – 20.0 mA |
| Measuring voltage: | 0–300 V |
| Polarity test: | Test voltage < 50 V AC |
| Protection: | I, II, III |
| Test current: | 200 mA |
| Dimension: | 235 × 140 × 80 mm |
| Weight: | 1195 g |
| Scope of delivery: | Incl. user manual, mains adapter and batteries, system carrying case, test lead with test probe and crocodile clip |
| Supplies, Optional: | Memory expansion and software, USB interfaces cable |
