Installation- and Device Tester

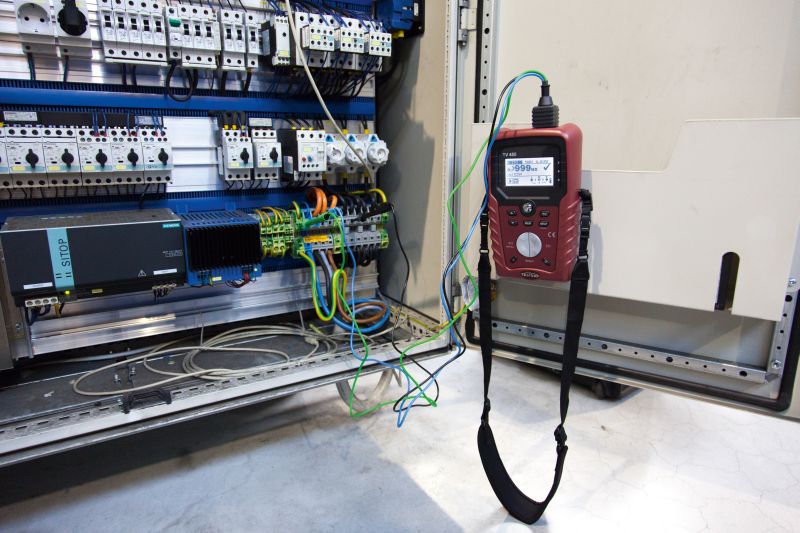

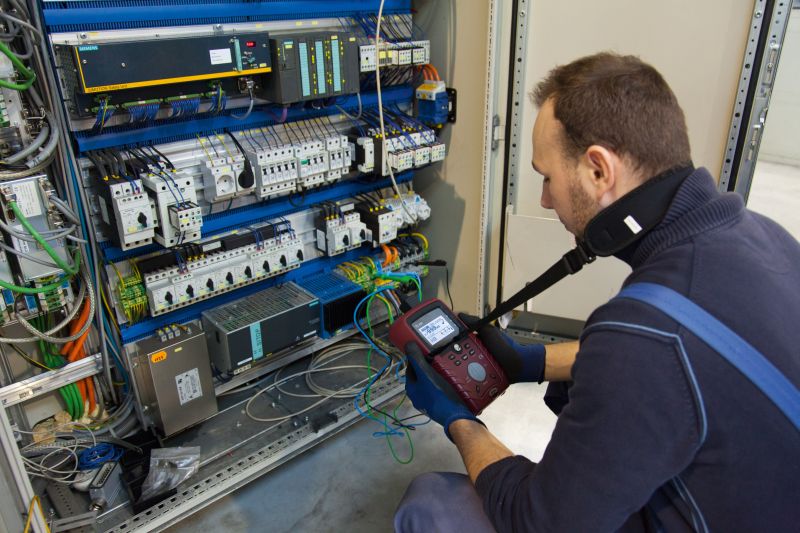

TESTBOY TV 455

Installation tester DIN VDE 0100-600

As its small brother, the TV 445, the Testboy TV 455 is suitable for testing in accordance with DIN VDE 0100-600. However, it has additional integrated test lead calibration. Due to the USB interface, the measurement results can be easily evaluated using the PC software supplied. Furthermore, it enables testing AC/DC sensitive RCDs TYPE B.

How you benefit

  • Check in accordance with DIN VDE 0100-600, ÖVE E8001, NIN/NIV
  • USB interface and PC software
  • Testing AC/DC sensitive RCDs (TYPE B)
  • Integrated test lead calibration
  • Log in accordance with ZVEH (option)

Specifications

Technical DataTESTBOY TV 455
Display:128 × 64 pixels with backlighting and integrated Good/Bad indication
Power Supply:6 × NiMH battery or battery AA
Test voltage:50 V, 100 V, 250 V, 500 V, 1000 V
Voltage measurement:0–550 V
Earth resistance measurement:0–9999 Ω
Insulation resistance:0.15 MΩ to 1 GΩ
Contact voltage RCD-Uc:0–100 V
Release Time:0 – 2500 ms
Trip-out current:10 mA, 30 mA, 100 mA, 500 mA, 1000 mA
Operating temperature:0–40 °C
Overvoltage protection:CAT III 600 V, CAT IV 300 V
Measurement value memory:1900 measurement values
Interface:USB
Housing:Robust plastic with integrated magnetic clamp
Scope of delivery:Incl. universal test cable 3 × 1.5 m, test cable for shockproof sockets, test probes, crocodile clips, mains adapter and batteries, carry strap, quick guide, CD with PC software, factory calibration certificate and carrying case
TESTBOY TV 455
