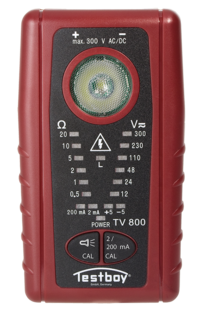

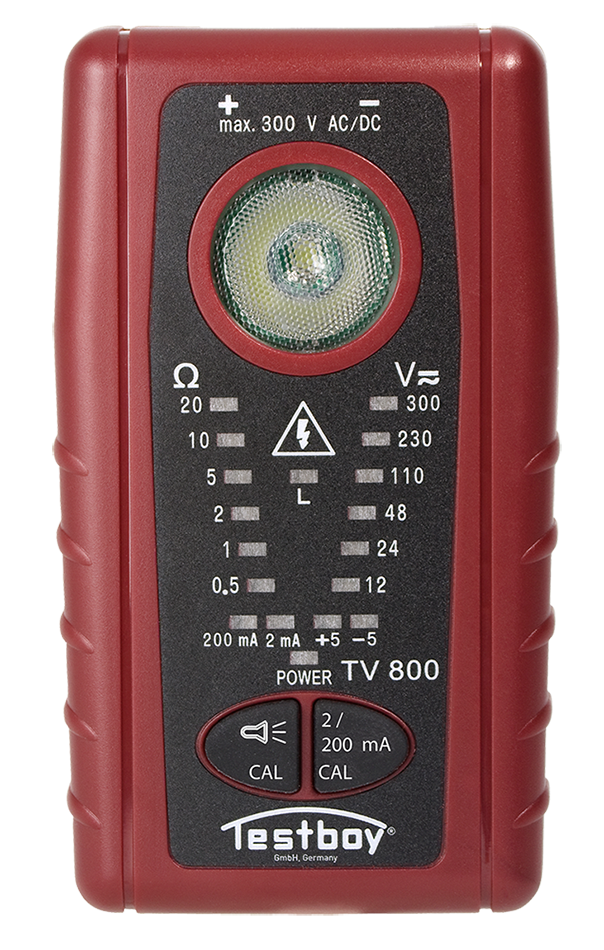

Testboy TV 800

Continuity tester with 200 mA according EN 61557-4

The Testboy TV 800 continuity tester is a device for testing the continuity resistance of a cable or connection using a test current of 2 mA or selectable 200 mA, according to EN 61557-4. A voltage test up to 300V AC/DC is also integrated, as well as the calibration of the test leads. The integrated LED serves as a flashlight or as an optical signal during continuity testing. The existing non-contact voltage sensor on the back of the device is used to reliably find interruptions in lines.

How you benefit

  • Break and impact resistant ABS housing
  • Selectable test current for continuity testing
  • Visual and audible indication

Specifications

Technical DataTestboy TV 800
Power supply:4 x 1,5V AA
Overload Category:CAT III 300 V
Standard:according to EN 61010-1, EN 61557-4
Dimension:123 x 64 x 29 mm
