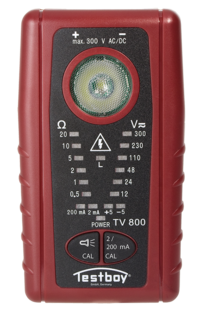

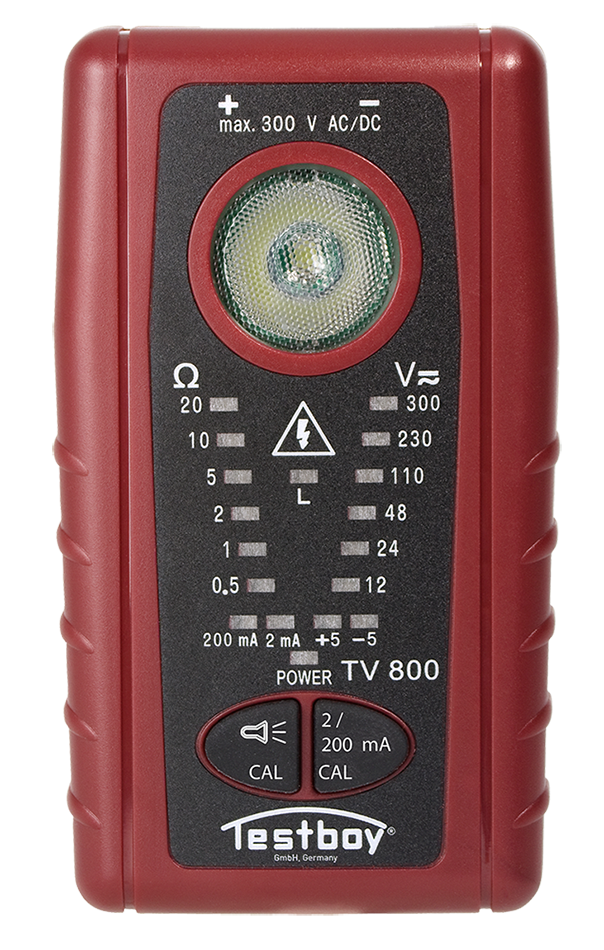

TESTBOY TV 800
Continuity tester with 200 mA according EN 61557-4
The Testboy TV 800 continuity tester is a device for testing the continuity resistance of a cable or connection using a test current of 2 mA or selectable 200 mA, according to EN 61557-4.
A voltage test up to 300V AC/DC is also integrated, as well as the calibration of the test leads.
The integrated LED serves as a flashlight or as an optical signal during continuity testing.
The existing non-contact voltage sensor on the back of the device is used to reliably find interruptions in lines.
How you benefit
- Break and impact resistant ABS housing
- Selectable test current for continuity testing
- Visual and audible indication
Specifications
| Technical Data | TESTBOY TV 800 |
|---|---|
| Power supply: | 4 x 1,5V AA |
| Overload Category: | CAT III 300 V |
| Standard: | according to EN 61010-1, EN 61557-4 |
| Dimension: | 123 x 64 x 29 mm |
