TESTBOY TV 435

Line splitter

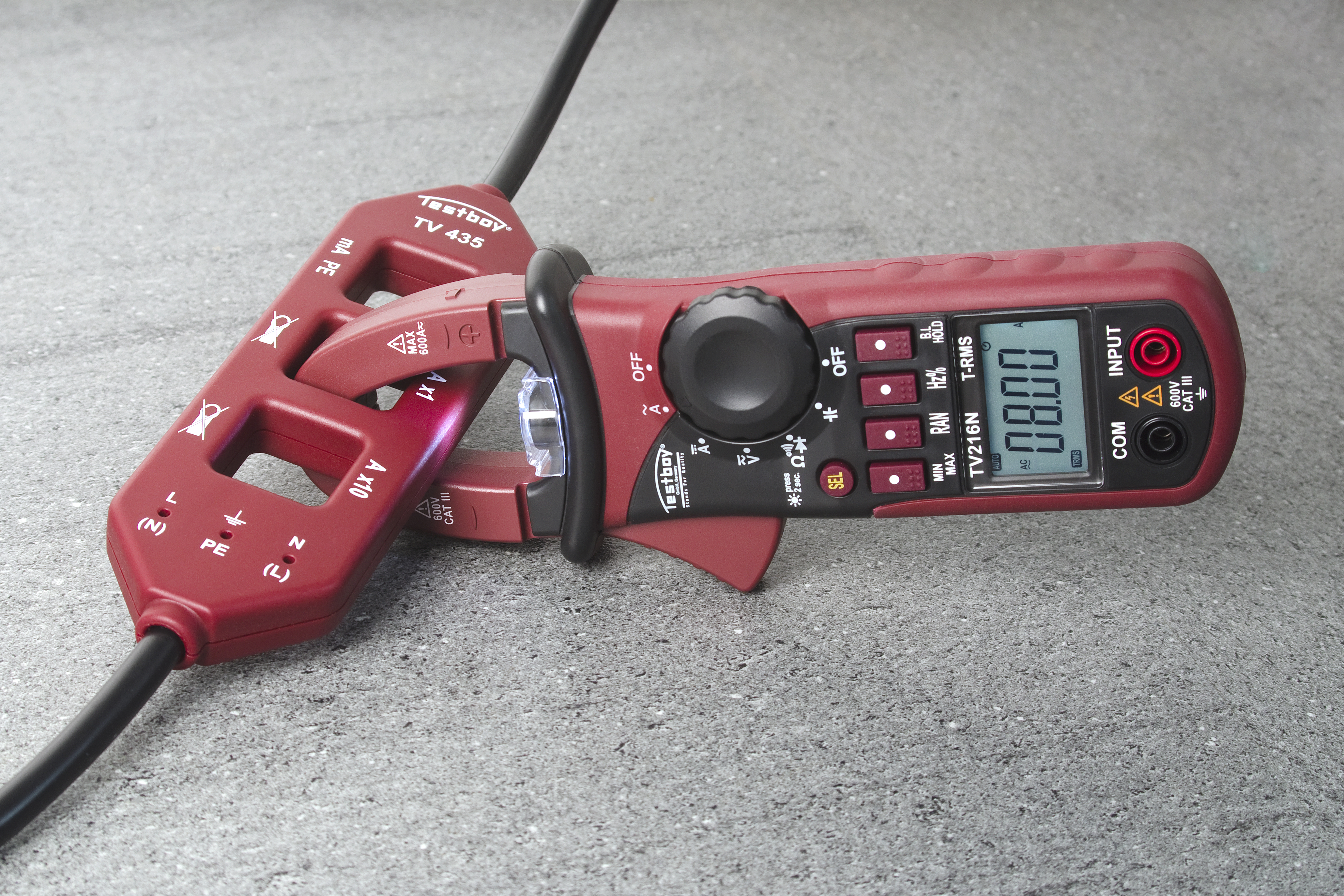

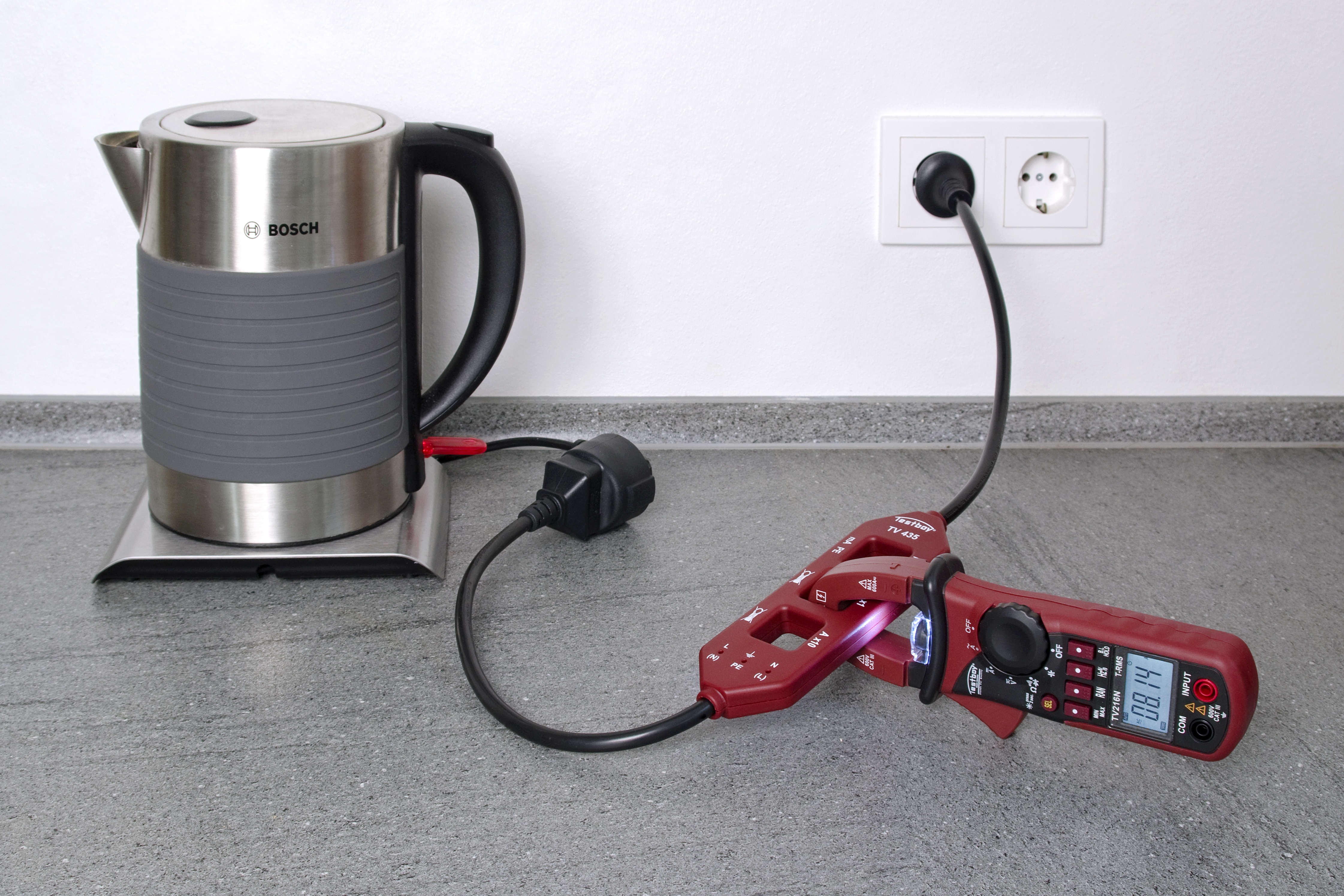

The Testboy® TV 435 line splitter is an adapter for testing various measured values of a consumer. Due to the existing Schuko connections, the adapter can be easily connected between the consumer and the socket. lt is possible to measure the single and 10-fold load current, the differential current between phase conductor and neutral conductor as well as the protective conductor current can be determined with the aid of a current clamp. The voltage ratios between the connected conductors can also be determined via the existing measuring sockets.

How you benefit

  • simple and 10-fold load current measurement
  • differential current measurement
  • protective conductor current measurement
  • Voltage measurement via integrated measuring sockets

Specifications

Technical DataTESTBOY TV 435
Overload Category:CAT III 300 V
Standard:according EN 61010-1, EN 61010-02-030
Voltage measurement:Yes
Dimension:180 x 53 x 17 mm
Weight:320 g
TESTBOY TV 435
