Installation testers/adapters

TESTBOY TV 416/432

CEE adapter with rotary field tester

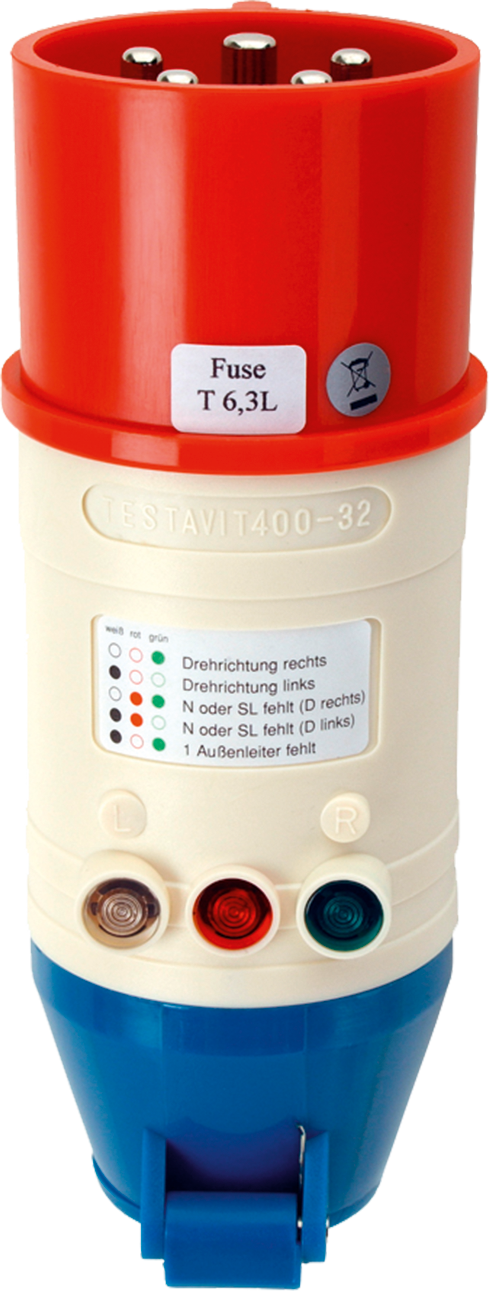

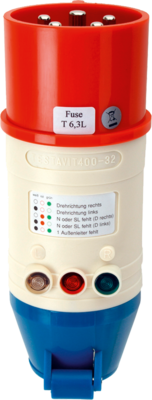

The Testboy TV 416/432(A) is a compact CEE adapter, comprising of a combination of CEE plug (16 A or 32 A), shockproof socket and self-closing flap cover, as well as integrated electronics for phase sequence measurement (only TV 416/432). In order to determine wiring errors, or to test the effectivity of the FI circuit breaker, it can be combined with the socket test devices Testavit Schuki 1A, 2K and 3A.

How you benefit

  • Unbreakable PE housing
  • Can be combined with Testavit Schuki 1A, 2K and 3A
  • Phase sequence indication (only TV 416/432)

Specifications

Technical DataTESTBOY TV 416/432
Display:Glow lamps
Overload Category:CAT II 300 V
Dimension:165 × 65 mm
Weight:250 g
Colour:Red/white/blue
TESTBOY TV 416/432
