TESTBOY TV 410N

Rotating field tester

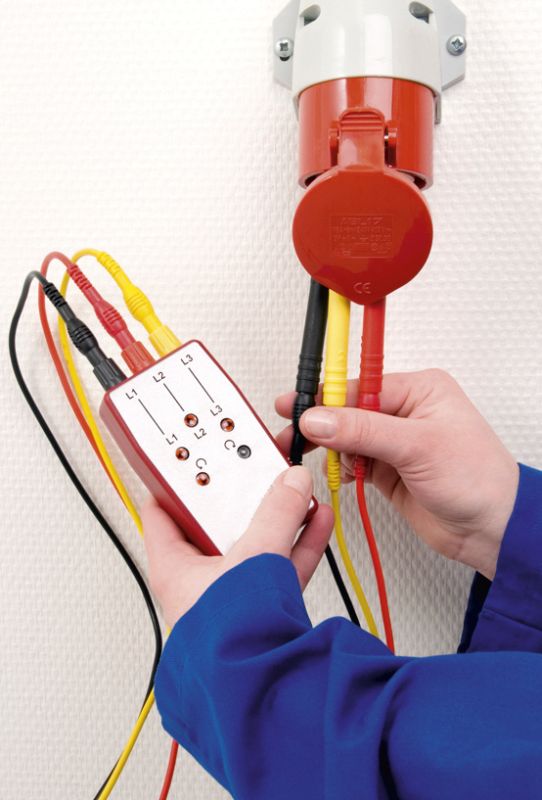

Using five glow lamps, the rotary field tester, Testboy TV 410N, indicates the presence of all three phases and, through their sequence, determines the correct order of the phases. The housing is made from impact-resistant, unbreakable ABS plastic, the fully insulated 4 mm sockets and the associated comprehensive and adaptable connection cable set provide safe testing and rapid determination of the phasing in a three-phase system.

How you benefit

  • Comprehensive connection cable set
  • Impacresistant and unbreakable ABS plastic housing

Specifications

Technical DataTESTBOY TV 410N
Display:Optical, 5 glow lamps
Current consumption:< 3 mA
Frequency Response:50/60 Hz
Power-on time:30 sec.
Nominal voltage:400 V AC
Housing:ABS synthetic material, resistant to breaking by impact
Dimension:115 × 60 × 25 mm
Weight:75 g
Colour:Red
Scope of delivery:Incl. Profi test probes, 4-mm safety cable, Profi crocodile clip and system carrying case
