Continuity Tester

TESTBOY 20 Plus

Voltage-proofed continuity tester

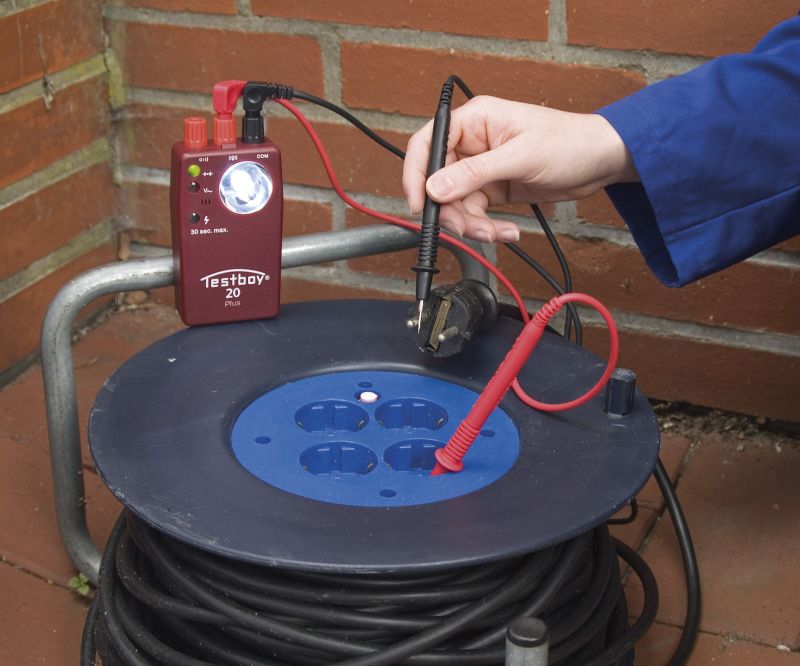

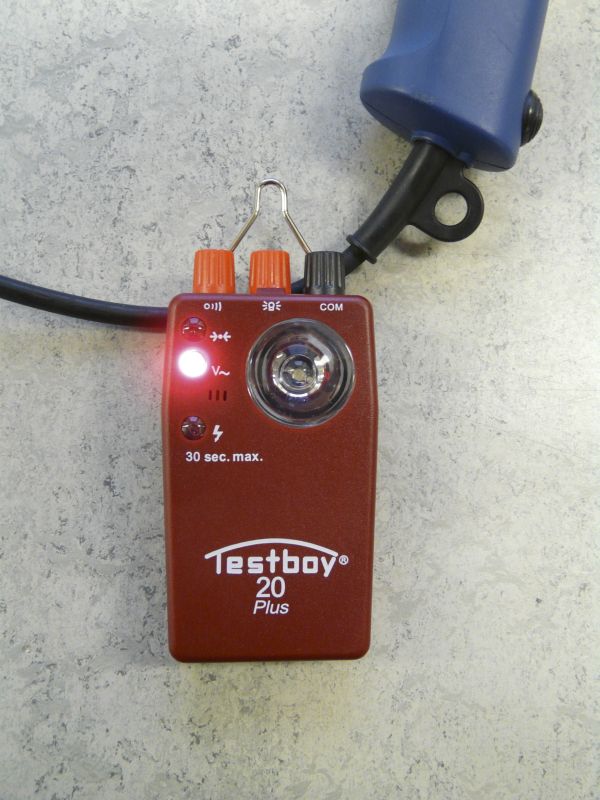

The Testboy 20 Plus is the further development of the most sold continuity tester Testboy 2 in Germany. Due to the non-contact voltage sensor, AC voltages can be detected through the insulation. Defective lamps in chains of Christmas lights, or similar, are indicated accurately within seconds. The current warner installed, warns of a voltage that is a risk to life. The electronics also enable a single-pole phase search.

How you benefit

  • Reliable continuity tester
  • Non-contact voltage sensor
  • High-performance LED torch

Specifications

Technical DataTESTBOY 20 Plus
Power supply:3 × 1.5 V
Overload Category:CAT II 300 V
Integrated LED-torch Lamp:Yes
Continuity Test:Optical 0–20 Ω
Acoustic 0–250 Ω
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Test voltage:4.5 V
Test current:Optical ~10 mA
Acoustic ~2 mA
External voltage protection:Up to 300 V
Dimensions:120 × 60 × 30 mm
Weight:90 g (excl. battery)
Colour:Red
Scope of delivery:2 × test leads
Supplies, Optional:Crocodile clip
Carrying case
TESTBOY 20 Plus
