Continuity Tester

TESTBOY 2

continuity tester

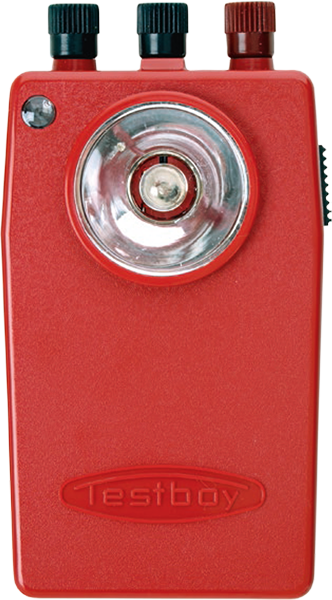

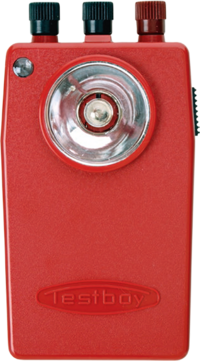

The extremely versatile continuity tester Testboy 2 offers an insulated, shock-resistant and break-proof plastic housing. The pluggable and screwable connection between the test leads and the terminal post is safe to touch. The continuity test is indicated by an acoustical and an optical signal. The integrated torch light allows you to find wires quick and safe under though circumstances.

How you benefit

  • Integrated current warner
  • Integrated torch light

Specifications

Technical DataTESTBOY 2
Power supply:1 x 4,5 V
Integrated LED-torch Lamp:Yes
Continuity Test:Optical 0-100 Ω
Acoustical 0-250 Ω
Protection:IP20
Standard:IEC/EN 61010-1 (DIN VDE 0411)
Test voltage:4,5 V
Test current:Optical 0,2 – 0,3 A DC
Acoustical 10 mA DC
Dimension:135 x 75 x 35 mm
Weight:90 g (excl. battery)
Colour:Red
Scope of delivery:2 x test leads, crocodile clip
Supplies, Optional:Carrying case
