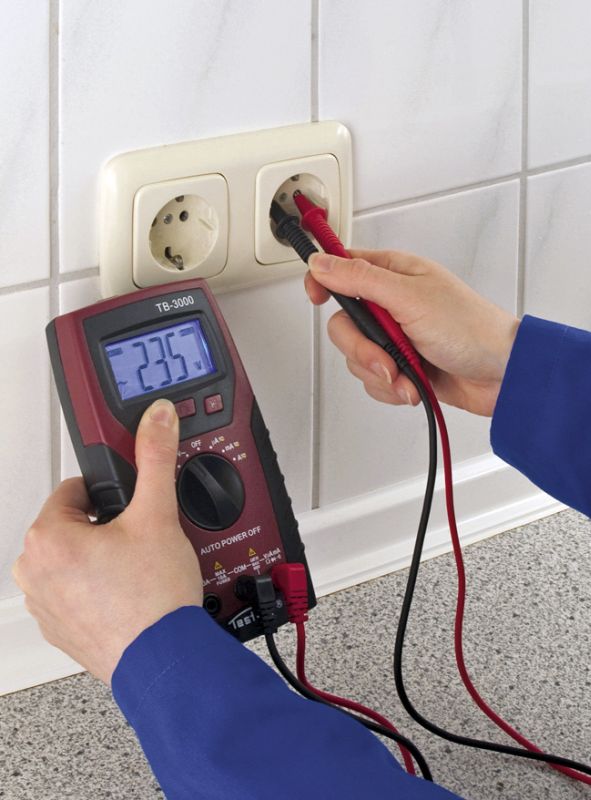

Digital Multimeter

TESTBOY 3000

Digital multimeter with cable break detector and LED torch

Modern design, the newest technology, as well as an extended range of functions, enables universal operation of the digital multimeter, Testboy 3000, in industry and trade. Due to the ABS housing, resistant to breakage and impacts and the easy operation, it is suitable for measuring under the roughest conditions.

How you benefit

  • ABS housing, resistant to breakage and impacts

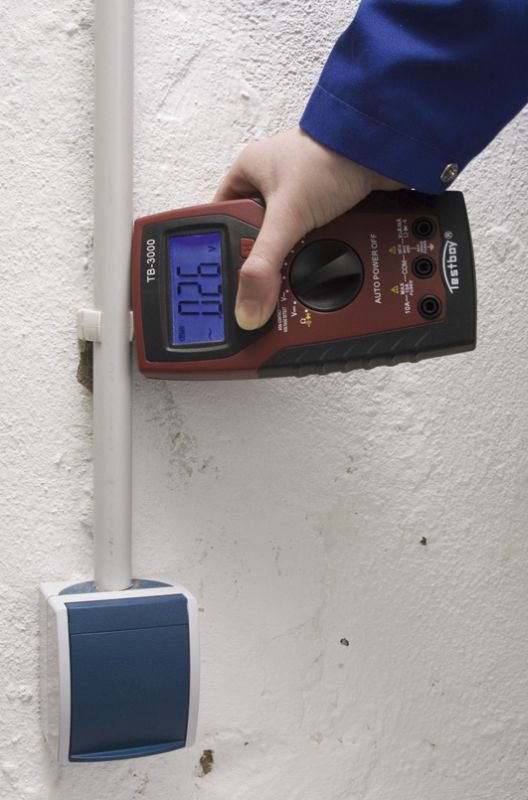

  • Non-contact cable break detector
  • LED torch
  • Auto range

Specifications

Technical DataTESTBOY 3000
Overload Category:CAT IV 600 V
Diode Test:Test current 0.6 mA
Off-load voltage typ. 1.5 V
Standard:IEC/EN 61010-1, IEC/EN 61010-2-033
Dimensions:165 × 85 × 32 mm
AC Voltage:2 V, 20 V ; ±1,5 %, ±5 Digits
200 V, 600 V ; ±1,5 %, ±5 Digits
AC Current:200 μA, 2000 μA ; ±1,3 %, ±5 Digits
10 A ; ±1,5 %, ±8 Digits
Auto power-off function:15 minutes
Non-contact voltage test:100–600 V AC (optical and acoustic)
Operating temperature range:0 – 40 °C (32 – 104 °F)
DC Voltage:200 mV ; ±0,5 %, ±3 Digits
2 V, 20 V, 200 V, 600 V ; ±0,8 %, ±5 Digits
DC Current:200 μA, 2000 μA ; ±1,0 %, ±3 Digits
10 A ; ±1,2 %, ±5 Digits
Continuity Test:Audible signal if resistance < 50 Ω
Input impedance:> 7.5 MΩ, typ 10 MΩ (AC V & DC V)
Storage temperature range:-10 – 50 °C (14 – 122 °F)
LED torch:white high-performance LED
Maximum input voltage:600 V AC/DC
AC V bandwidth:50–400 Hz
Resistance:200 Ω ; ±1,0 %, ±5 Digits
2 kΩ, 20 kΩ, 200 kΩ ; ±1,0 %, ±5 Digits
2 MΩ, ±1,0 %, ±5 Digits
20 MΩ ; ±1,8 %, ±5 Digits
Weight:300 g incl. batteries
Colour:Red/black
Scope of delivery:Incl. test leads, system carrying case, batteries
TESTBOY 3000
